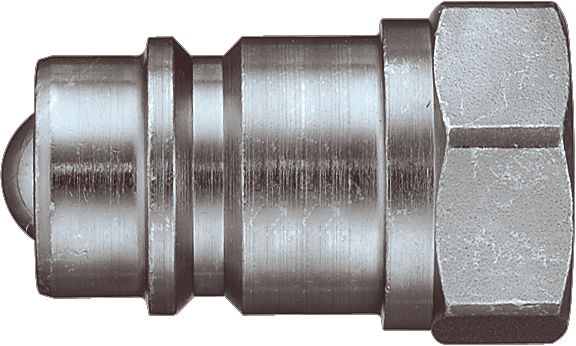

Hydraulic Quick Connect Nipple, Carbon Steel, ISO 7241 Series 'A', 1/2" x 1/2-14, Female NPT, 2.5" Length, 3625PSI

                    (Pack of
                    1)

The integrity of your connection is only as good as the quality of your coupler or nipple. AG couplers and nipples provide the quality and reliability you need. They feature a quality design most commonly used in agricultural applications and are also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.
 Carbon steel body with yellow zinc plating
 Mating parts are hardened
 Nitrile O-ring seals
 Ball seal allows proper coupler function in presence of dirt, oils, etc.
 Easy coupling and uncoupling
 Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
 Temperature range: 40°F to +250°F (40°C to +121°C)
Dixon: AG-SeriesPioneerParker: 4000 SeriesFaster: NS
Couldn't load pickup availability
  California Proposition 65:  Not Applicable
  www.P65Warnings.ca.gov
Catalog page#: 8-82
Frequently Bought Together


                      KH Series Crimp-On Coupling 1/2" x 1-1/16-12
Couldn't load pickup availability


                      Face Seal O-Ring Buna-N 0.364 x 0.07"
Couldn't load pickup availability


                      Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Couldn't load pickup availability


                      Pipe Coupling Brass 1/2-14 x 1/2-14
Couldn't load pickup availability


                      Forged Body Ball Valve Brass 1/2-14 x 1/2-14
Couldn't load pickup availability


                      Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability


                      Hydraulic Quick Connect Nipple 3/4" x 3/4-14
Couldn't load pickup availability


                      Hydraulic Quick Connect Nipple Steel 3/8" x 1/2-14
Couldn't load pickup availability


                      FEM-501-12FO
Couldn't load pickup availability


                      Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability


                      Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability


                      USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
The integrity of your connection is only as good as the quality of your coupler or nipple. AG couplers and nipples provide the quality and reliability you need. They feature a quality design most commonly used in agricultural applications and are also suitable for use in construction, forestry equipment and mineral oil hydraulic systems. Carbon steel body with yellow zinc plating
 Mating parts are hardened
 Nitrile O-ring seals
 Ball seal allows proper coupler function in presence of dirt, oils, etc.
 Easy coupling and uncoupling
 Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
 Temperature range: 40°F to +250°F (40°C to +121°C)
Dixon: AG-SeriesPioneerParker: 4000 SeriesFaster: NS
Technical Specifications
| Item#: | 84602 |
|---|---|
| Type | Nipple |
| Style | ISO 5675 |
| Body Size | 1/2 " |
| Thread Size | 1/2-14 |
| Thread Style | Female NPT |
| Seal Material | Nitrile (Buna-N) |
| Length | 1.75 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 3,625 PSI |
| Coupled Length | 3.40 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | No |
| Weight: | 0.19 lb |
Product Restrictions
