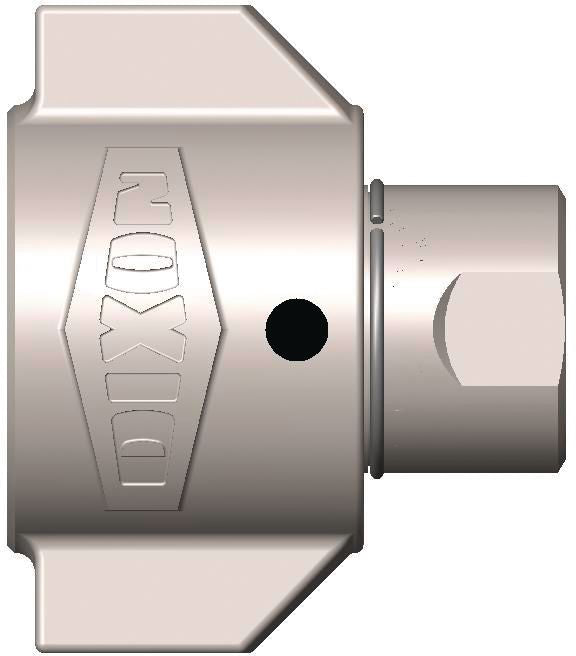

Hydraulic Quick Connect Coupler 3/4" x 1/2-14
(Pack of
1.0)
• Provides no-spill connections for oil rigs and pile drivers• Unique casting process provides greater durability than competitive couplers• Heavy-duty hammer lugs provide optimum durability• Seals are easily field replaceable. The valve seal can be replaced without having to replace the entire valve• Comply with Det Norske Veritas North Sea standards• Unique “initial-thread” profile ensures nipple longevity in tough environments
Dixon: WS SeriesSnap-tite: 75 Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-88
Frequently Bought Together
Crimp-On Coupling 3/8" x 13/16-16
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.69" x 50'
Couldn't load pickup availability
Hydraulic Plug, 9/16-18"(06) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability
Pipe Close Nipple Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
Forged Body Ball Valve Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
Hydraulic Quick Connect Replacement Seal 1/4"
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/4" x 3/4-14
Couldn't load pickup availability
Hydraulic Quick Connect Nipple 3/4" x 3/4-14
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Rechargeable Penlight Flashlight
Couldn't load pickup availability
Product Description
• Provides no-spill connections for oil rigs and pile drivers• Unique casting process provides greater durability than competitive couplers• Heavy-duty hammer lugs provide optimum durability• Seals are easily field replaceable. The valve seal can be replaced without having to replace the entire valve• Comply with Det Norske Veritas North Sea standards• Unique “initial-thread” profile ensures nipple longevity in tough environmentsDixon: WS SeriesSnap-tite: 75 Series
Technical Specifications
| Item#: | 20986 |
|---|---|
| Hydraulic/Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | Wing Style |
| Body Size | 3/4 " |
| Thread Size | 1/2-14 |
| Thread Style | Female NPTF |
| Burst Pressure | 32,800 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Steel |
| Locking Mechanism | Threaded |
| Flow | 35 gal/min |
| Length | 2.76 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 5,000 PSI |
| Hex Size | - " |
| Maximum Diameter | 3.23 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 1.92 lb |
