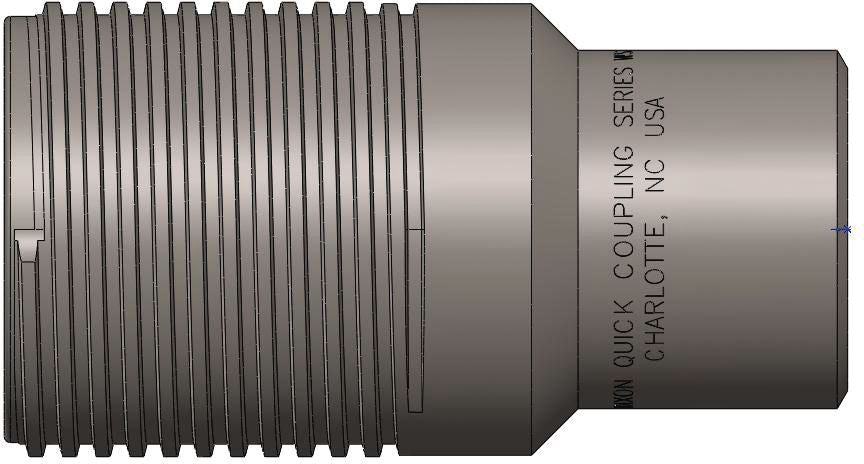

Hydraulic Quick Connect Nipple, Steel, Wing Style, 1-1/2" x 1-1/2-11-1/2, Female NPTF, 5.38" Length, 5000PSI
(Pack of
1)
SKU:20993 Item#: 20993
• Provides no-spill connections for oil rigs and pile drivers• Unique casting process provides greater durability than competitive couplers• Heavy-duty hammer lugs provide optimum durability• Seals are easily field replaceable. The valve seal can be replaced without having to replace the entire valve• Comply with Det Norske Veritas North Sea standards• Unique “initial-thread” profile ensures nipple longevity in tough environments
Dixon: WS SeriesSnap-tite: 75 Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-88
Frequently Bought Together
Weatherhead H280 Hydraulic Hose Rubber 0.69" x 50'
Couldn't load pickup availability
KH Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Couldn't load pickup availability
Face Seal O-Ring Buna-N 0.364 x 0.07"
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
HT4OF4
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/8" x 3/8-18
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/4" x 1/4-18
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Product Description
• Provides no-spill connections for oil rigs and pile drivers• Unique casting process provides greater durability than competitive couplers• Heavy-duty hammer lugs provide optimum durability• Seals are easily field replaceable. The valve seal can be replaced without having to replace the entire valve• Comply with Det Norske Veritas North Sea standards• Unique “initial-thread” profile ensures nipple longevity in tough environmentsDixon: WS SeriesSnap-tite: 75 Series
Technical Specifications
| Item#: | 20993 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | Wing Style |
| Body Size | 1-1/2 " |
| Thread Size | 1-1/2-11-1/2 |
| Thread Style | Female NPTF |
| Burst Pressure | 19,300 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Steel |
| Locking Mechanism | Threaded |
| Flow | 160 gal/min |
| Length | 5.98 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 5,000 PSI |
| Hex Size | - " |
| Maximum Diameter | 3.25 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 7.12 lb |
