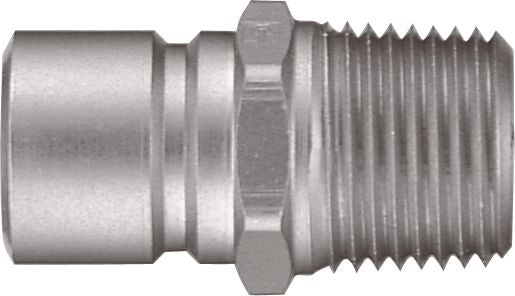

Hydraulic Quick Connect Nipple, Brass, Unvalved, 1/2" x 1/2-14, Male NPTF, 1.69" Length, 300PSI
(Pack of
2)
SKU:55833 Item#: 55833
These couplers and nipples are designed exclusively for coolant lines to molds and dies on injection molding machinery, and are engineered to significantly reduce downtime by providing fast, easy connection of coolant lines during mold changes.
• Couplers are non-valved and provide maximum flow for efficient cooling
• Use in conjunction with Lawson’s Barb-Lok hose and pipe fittings for superior performance
• All sizes are pressure rated to 200 PSI
Dixon: CM-Series
Parker: Mold Mate
Foster: FJT
Hansen: Flo-Temp
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-86
Frequently Bought Together
Straight Thread O-Ring Buna-N 0.468 x 0.078"
Couldn't load pickup availability
Crimp-On Hose Coupling 1/4" x 9/16-18
Couldn't load pickup availability
Hydraulic Plug, 7/8-14"(10) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
1/2" ISO-FF COUPL, 3/4"-16 ORB, STE
Couldn't load pickup availability
Coupler, ISO16028, 1/2" Body, 1-1/16"- 12 Female ORB, Steel
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/4" x 3/4-14
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
These couplers and nipples are designed exclusively for coolant lines to molds and dies on injection molding machinery, and are engineered to significantly reduce downtime by providing fast, easy connection of coolant lines during mold changes.• Couplers are non-valved and provide maximum flow for efficient cooling
• Use in conjunction with Lawson’s Barb-Lok hose and pipe fittings for superior performance
• All sizes are pressure rated to 200 PSI
Dixon: CM-Series
Parker: Mold Mate
Foster: FJT
Hansen: Flo-Temp
Technical Specifications
| Item#: | 55833 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | Unvalved |
| Body Size | 1/2 " |
| Thread Size | 1/2-14 |
| Thread Style | Male NPTF |
| Burst Pressure | 4,900 PSI |
| Seal Material | Silicone |
| Material | Brass |
| Flow | 15 gal/min |
| Length | 1.69 " |
| Temperature Range | -90 to 400 F |
| Working Pressure | 300 PSI |
| Hex Size | 7/8 " |
| Maximum Diameter | 1.01 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.24 lb |
