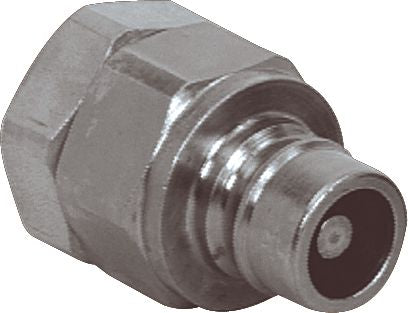

Hydraulic Quick Connect Nipple Steel 1/2" x 1/2-14
(Pack of
1.0)

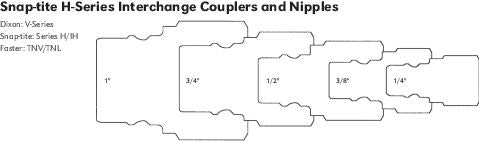

Double shut-off design for high-pressure applications, Snap-tite H/IH Couplers and Nipples provide excellent performance and are completely interchangeable with Snap-tite H Series and Faster TNV.
• Also fully interchangeable with MIL-C-51234 couplers and nipples
• Connection and disconnection require manual sleeve retraction
Dixon: T-Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-85
Frequently Bought Together
Hydraulic Plug, 7/8-14"(10) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 1/2-14
Couldn't load pickup availability
KH Series Crimp-On Elbow Flare 90° 3/8" x 9/16-18
Couldn't load pickup availability
Hose Clamp 301 SS 1-9/16 to 2-1/2"
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-1/16-12
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/4" x 1/2-14
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/2" x 1/2-14
Couldn't load pickup availability
Hydraulic Dust Plug for Coupler Aluminum 1"
Couldn't load pickup availability
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
Master Security Bit Set 203Pc
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
Double shut-off design for high-pressure applications, Snap-tite H/IH Couplers and Nipples provide excellent performance and are completely interchangeable with Snap-tite H Series and Faster TNV.• Also fully interchangeable with MIL-C-51234 couplers and nipples
• Connection and disconnection require manual sleeve retraction
Dixon: T-Series
Technical Specifications
| Item#: | 53612 |
|---|---|
| Hydraulic/Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | Snap-Tite H/IH |
| Standards | MIL-C-51234 |
| Body Size | 1/2 " |
| Thread Size | 1/2-14 |
| Thread Style | Female NPTF |
| Burst Pressure | 9,600 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Steel |
| Flow | 13 gal/min |
| Length | 1.99 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 4,000 PSI |
| Hex Size | 1-3/16 " |
| Maximum Diameter | 1.31 " |
| Coupled Length | 3.40 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.32 lb |
