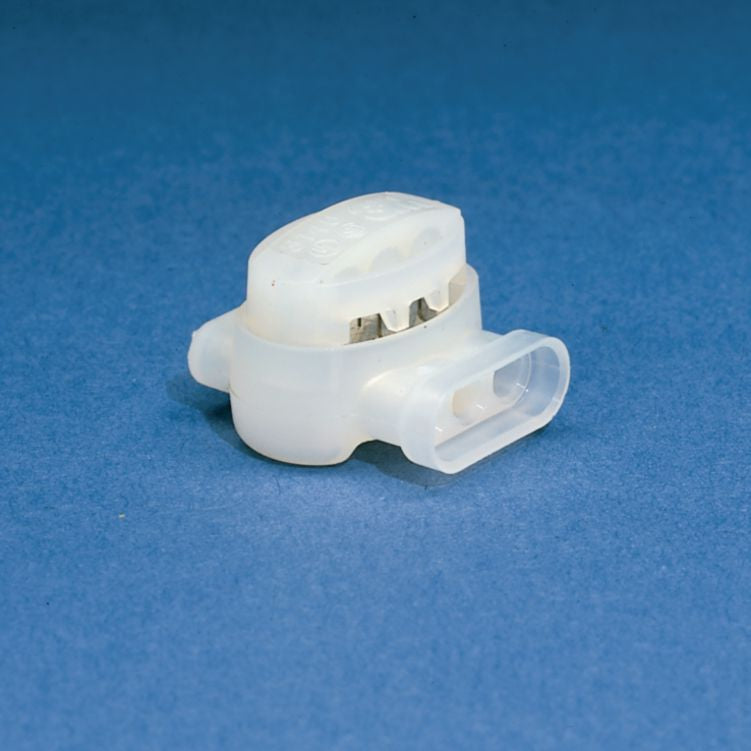

IDC Pigtail Connector, 22 to 14 AWG, 221°F Temperature Rating
(Pack of
25)
• A great new design of U-element (Scotchlok®) connectors

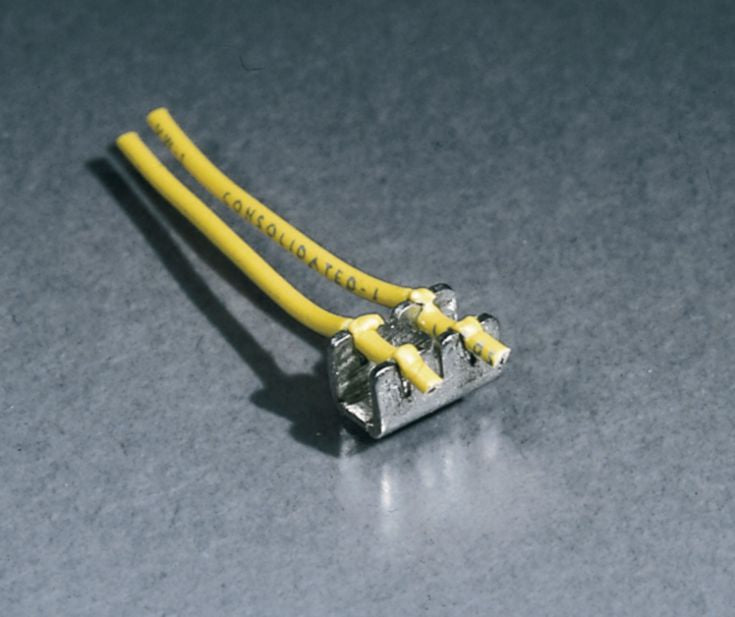

• The solid, tin-plated, copper U-element gives you a reliable, fast, self-stripping connection

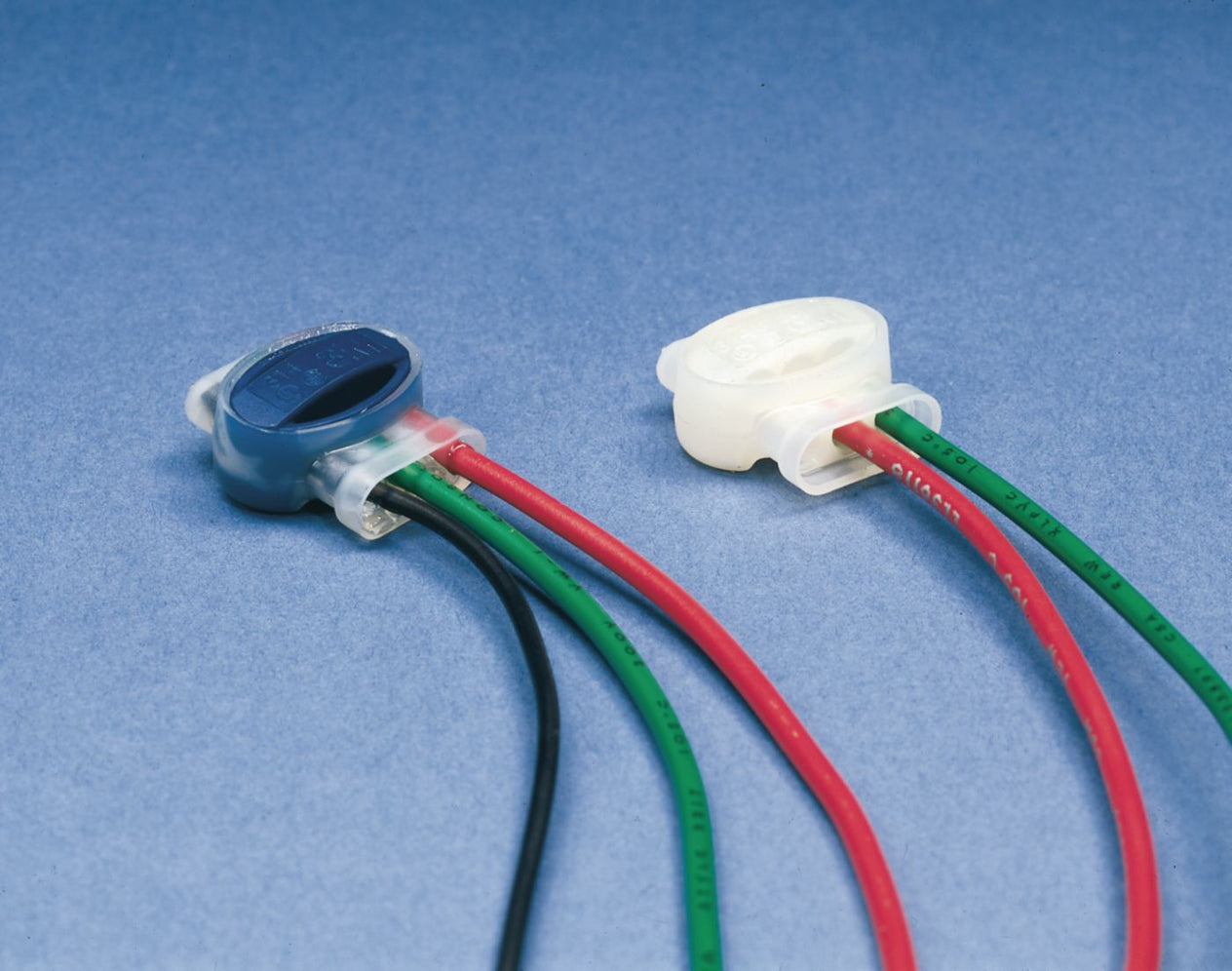

• Makes two-way or three-way pigtail connections using 22–14 Ga. solid or stranded copper wire
• The moisture-resistant version is filled with a special sealant to guard against corrosion – use in damp locations such as vehicle undercarriages, marinas, exposed light and control wiring
• 600V
• Maximum temperature 221°F (105°C)
*Insulation Displacement Connector
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-62
Frequently Bought Together
Female Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
Telcom IDC Discrete Connector 26 to 19 AWG
Couldn't load pickup availability
IDC Pigtail Connector 22 to 14 AWG
Couldn't load pickup availability
Telcom IDC Discrete Connector 26 to 22 AWG
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Wire Connector 22 to 14 AWG Orange
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Spade Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• A great new design of U-element (Scotchlok®) connectors• The solid, tin-plated, copper U-element gives you a reliable, fast, self-stripping connection
• Makes two-way or three-way pigtail connections using 22–14 Ga. solid or stranded copper wire
• The moisture-resistant version is filled with a special sealant to guard against corrosion – use in damp locations such as vehicle undercarriages, marinas, exposed light and control wiring
• 600V
• Maximum temperature 221°F (105°C)
*Insulation Displacement Connector
Technical Specifications
| Item#: | 95350 |
|---|---|
| Style | IDC Pigtails |
| Wire Gauge | 22-14 AWG |
| Color | White |
| Voltage Rating | 600 V |
| Maximum Temperature Rating | 221 F |
| Connector Type | Pigtail |
| Description | White Top - For Dry Locations |
| Type | Electrical Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.18 lb |
