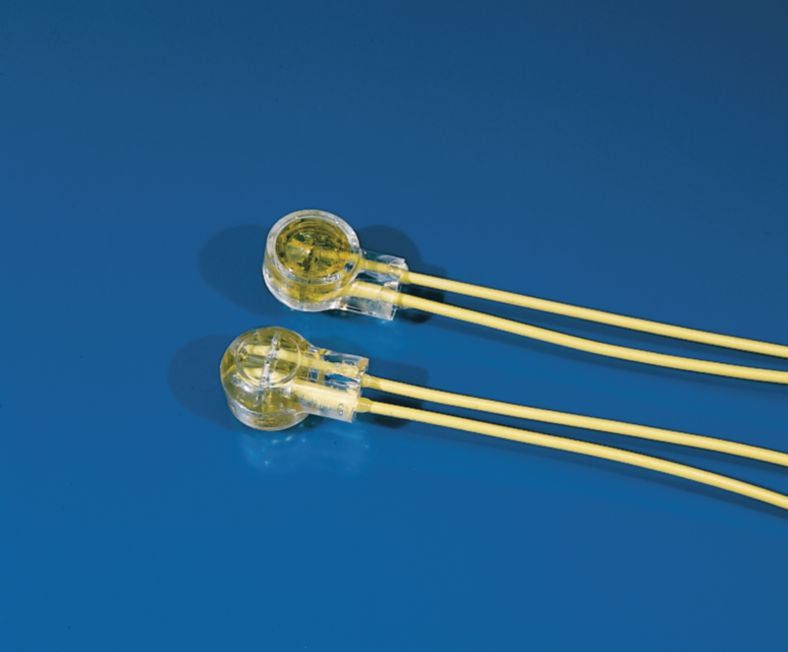

Telcom IDC Discrete Connector, 26 to 22 AWG, Yellow/Clear, 2-Wire Compact Butt
(Pack of
50)
• Filled with a corrosion-resistant sealant that resists moisture to protect the integrity of each connection
• Clear body allows visual inspection of the connection
• Compact design makes high-density wiring easier
• Color-coded translucent caps for fast identification
• The solid, tin-plated copper U-element clamps down on the wire, cuts through the insulation and tightly grips the conductor
• Simple installation
• Provides a gas-tight connection
• Low electrical contact resistance
• Originally designed for the telecommunication industry, these U-element connectors have become very popular in other industries because of their high reliability, compact design and moisture resistance
*Insulation Displacement ConnectorNOTE: While initial tests show these connectors work equally well with stranded wire in these ranges, each application should be tested by the user for suitability.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-62
Frequently Bought Together
MINI Fuse 30A Green
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
IDC Pigtail Connector 22 to 14 AWG
Couldn't load pickup availability
Scotchlok Instant Auto-Electrical Connector
Couldn't load pickup availability
Telcom IDC Discrete Connector 26 to 19 AWG
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Ring Tongue Terminal 22 to 18 AWG Clear #10 Stud
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Product Description
• Filled with a corrosion-resistant sealant that resists moisture to protect the integrity of each connection• Clear body allows visual inspection of the connection
• Compact design makes high-density wiring easier
• Color-coded translucent caps for fast identification
• The solid, tin-plated copper U-element clamps down on the wire, cuts through the insulation and tightly grips the conductor
• Simple installation
• Provides a gas-tight connection
• Low electrical contact resistance
• Originally designed for the telecommunication industry, these U-element connectors have become very popular in other industries because of their high reliability, compact design and moisture resistance
*Insulation Displacement ConnectorNOTE: While initial tests show these connectors work equally well with stranded wire in these ranges, each application should be tested by the user for suitability.
Technical Specifications
| Item#: | 93073 |
|---|---|
| Style | Telcomm IDC Discrete Connectors |
| Wire Gauge | 26-22 AWG |
| Color | Yellow/Clear |
| Maximum Insulation O.D. | 0.060 " |
| Connector Type | 2 Wire, Compact Butt |
| Industry Number | UY |
| Type | Electrical Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
