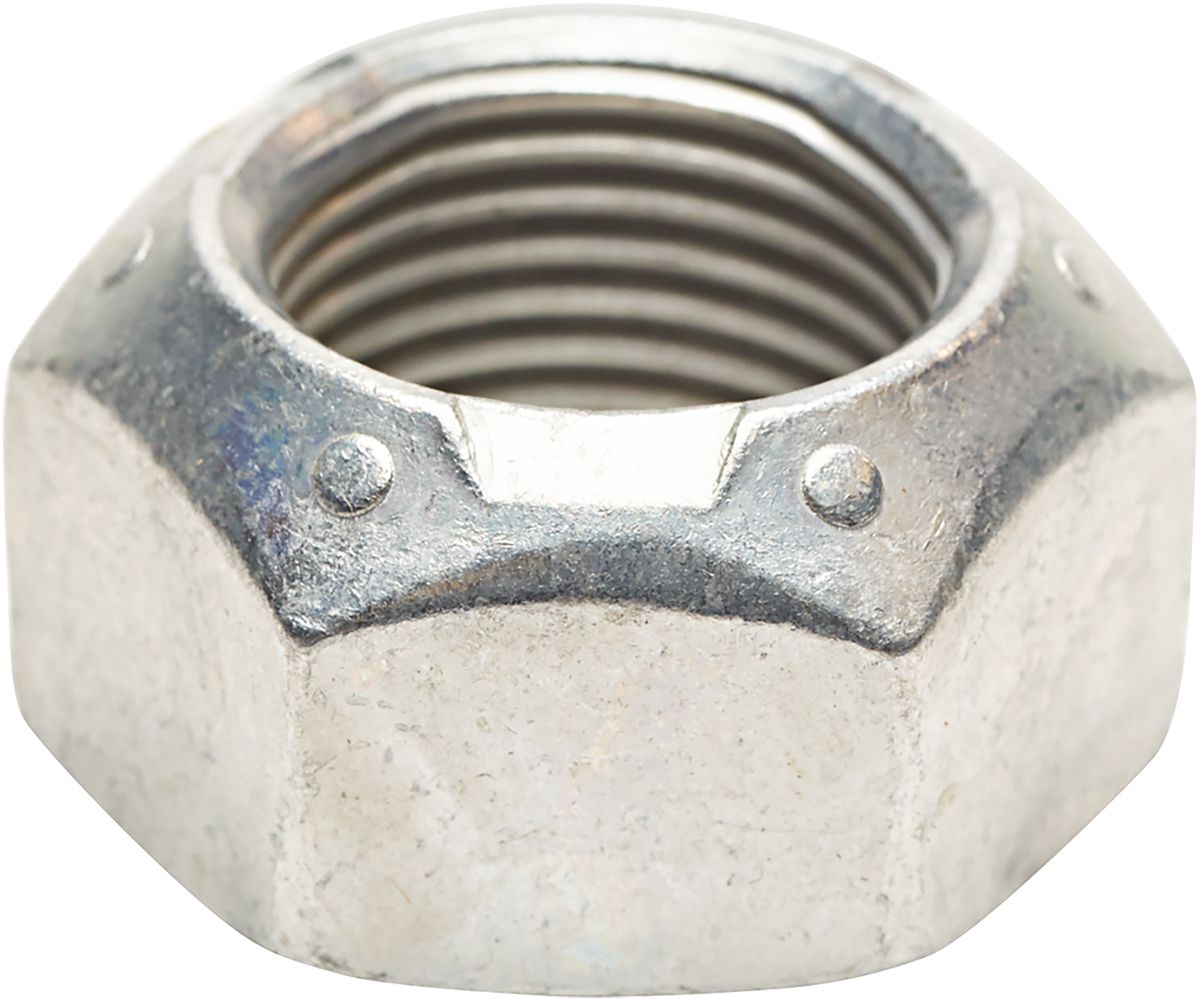

IFI 100/107 Top Locknut Grade C 3/4-16
(Pack of
25.0)
• Heat-treated for matched strength
• Will not loosen even under severe vibration
• Locking torque is retained for a minimum of five reapplications
• 150,000 PSI minimum proof strength
• Meets IFI and ANSI specifications
• Developed for Grade 8 applications
• Designed for use with Tuff-Torq® Cap Screws
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut
NOTE: Not recommended for use above 450°F (232°C).
For recommended torque values, see Lawson’s E546 brochure.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
USS Flat Washer Low Carbon Steel 1/4"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 7/16-14
Couldn't load pickup availability
Flange Locknut Grade 10 Alloy Steel M8-1.25
Couldn't load pickup availability
Locknut with Nylon Insert 18-8 SS 1/2-13
Couldn't load pickup availability
Flange Locknut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/4-10
Couldn't load pickup availability
Hex Nut 18-8 Stainless Steel 3/8-16
Couldn't load pickup availability
Top Locknut Grade C 3/4-10
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/4-20
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
• Heat-treated for matched strength• Will not loosen even under severe vibration
• Locking torque is retained for a minimum of five reapplications
• 150,000 PSI minimum proof strength
• Meets IFI and ANSI specifications
• Developed for Grade 8 applications
• Designed for use with Tuff-Torq® Cap Screws
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut
NOTE: Not recommended for use above 450°F (232°C).
For recommended torque values, see Lawson’s E546 brochure.
Technical Specifications
| Item#: | 80946 |
|---|---|
| Diameter | 3/4 " |
| Thread Pitch | 16 |
| Grade | C |
| Finish | Zinc/Wax |
| Type | Top Lock Nut |
| Material | Alloy Steel |
| Thickness | 0.827 " |
| Across Flats | 1-1/8 " |
| Thread | Fine |
| Size | 3/4-16 |
| Specifications | IFI 100/107 |
| Maximum Temperature | 450º F |
| Proof | 150,000 PSI |
| UNSPSC #: | 31161716 |
| TAA Compliant: | No |
| Weight: | 2.58 lb |
