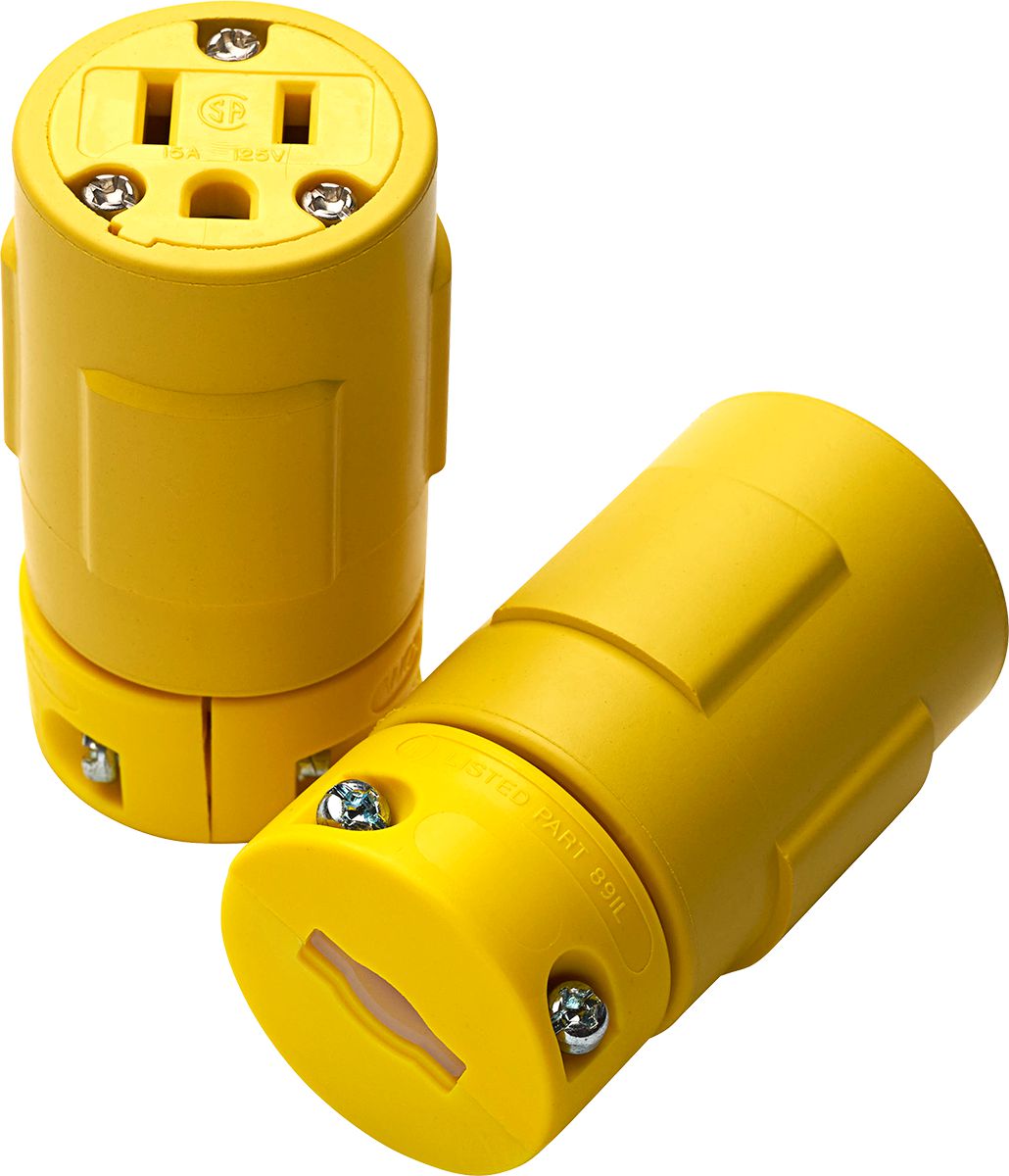

Industrial Duty Connector, 15 Amps, 125 Volts, 0.335 to 0.64" Cord Diameter, NEMA 5-15R
(Pack of
2)
SKU:25063 Item#: 25063
• Insulated Neotex® rubber cover resists heat, oils, water and chemicals, providing an extended service life.
• Designed to last longer in harsh industrial environments
• Transparent, tough polycarbonate back to allow visual inspection
• Connector line and ground contacts are formed from a single piece of phosphor bronze for maximum conductivity
• Captive assembly screws
• Floating blades self-align to differing receptacles to assure a good contact
• Extra-wide, neutral blade offers redundant protection against reverse polarity
• No. 10 ground screws
• Dust fin guards cord opening from dust entry
• Self-centering clamps eliminate stress on wiring terminals and accept cords from 18/3 SJO to 12/3 SO
• Impact-resistant nylon cord grip
Couldn't load pickup availability
Catalog page#: 17-90
Frequently Bought Together
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Clear
Couldn't load pickup availability
MINI Fuse 15A Blue
Couldn't load pickup availability
Industrial Duty Plug 20A 125V L5-20P
Couldn't load pickup availability
Industrial Duty Connector 20A 125V
Couldn't load pickup availability
Ground Fault Receptacle 15A 125V Ivory
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Toggle Switch SPST 50A 6V Off-On
Couldn't load pickup availability
Universal Toggle Switch SPST 6A 125V On-Off
Couldn't load pickup availability
Rocker Switch DPST 25A 12VDC On-Off
Couldn't load pickup availability
Product Description
• Insulated Neotex® rubber cover resists heat, oils, water and chemicals, providing an extended service life.• Designed to last longer in harsh industrial environments
• Transparent, tough polycarbonate back to allow visual inspection
• Connector line and ground contacts are formed from a single piece of phosphor bronze for maximum conductivity
• Captive assembly screws
• Floating blades self-align to differing receptacles to assure a good contact
• Extra-wide, neutral blade offers redundant protection against reverse polarity
• No. 10 ground screws
• Dust fin guards cord opening from dust entry
• Self-centering clamps eliminate stress on wiring terminals and accept cords from 18/3 SJO to 12/3 SO
• Impact-resistant nylon cord grip
Technical Specifications
| Item#: | 25063 |
|---|---|
| Style | Industrial-Duty Plugs and Connectors |
| Volts | 125 |
| Description | Connector |
| NEMA Configuration | 5-15R |
| Cord Diameter | 0.335 - 0.640 " |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.48 lb |
