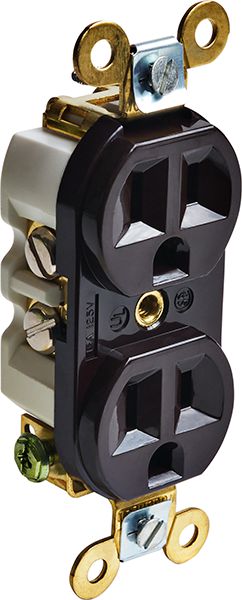

Industrial Duty Duplex Receptacle, 15 Amps, 125 Volts, Brown, NEMA 5-15R
(Pack of
1)
SKU:80815 Item#: 80815
• All-nylon housing and faceplate are sonically welded together to form a solid one-piece body
• Self-grounding spring clip attaches to box mounting screw to assure reliable grounding
• The yoke and ground contacts are one continuous piece of heavy gauge brass for superior conductivity and spring tension life
• Line contacts have triple-wipe and ground contacts have double-wipe connection points
• Solid center rivet provides positive grounding path
• No. 10 ground screws increase safety along the grounding path
• Eight back and four side openings for back and side wiring – accepts wire sizes up to 10 Ga.
• For high-use industrial and commercial applications
Couldn't load pickup availability
Catalog page#: 17-89
Frequently Bought Together
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
ATO/ATC Fuse 10A Red
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Thermoplastic Connector 2 Pole 3 Wire 15A 125V
Couldn't load pickup availability
Industrial Duty Connector 20A 125V
Couldn't load pickup availability
Weather Protected Plug Boot 2 Pole 3 Wire 30A 250V
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Toggle Switch Faceplate
Couldn't load pickup availability
Hospital Grade Straight Plug 15A 125V
Couldn't load pickup availability
Universal Toggle Switch DPDT 20A 125V On-On
Couldn't load pickup availability
Product Description
• All-nylon housing and faceplate are sonically welded together to form a solid one-piece body• Self-grounding spring clip attaches to box mounting screw to assure reliable grounding
• The yoke and ground contacts are one continuous piece of heavy gauge brass for superior conductivity and spring tension life
• Line contacts have triple-wipe and ground contacts have double-wipe connection points
• Solid center rivet provides positive grounding path
• No. 10 ground screws increase safety along the grounding path
• Eight back and four side openings for back and side wiring – accepts wire sizes up to 10 Ga.
• For high-use industrial and commercial applications
Technical Specifications
| Item#: | 80815 |
|---|---|
| Style | Industrial-Duty Straight Blade Duplex Receptacles |
| Volts | 125 |
| Description | Duplex |
| NEMA Configuration | 5-15R |
| Color | Brown |
| Approvals | UL, CSA |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.22 lb |
