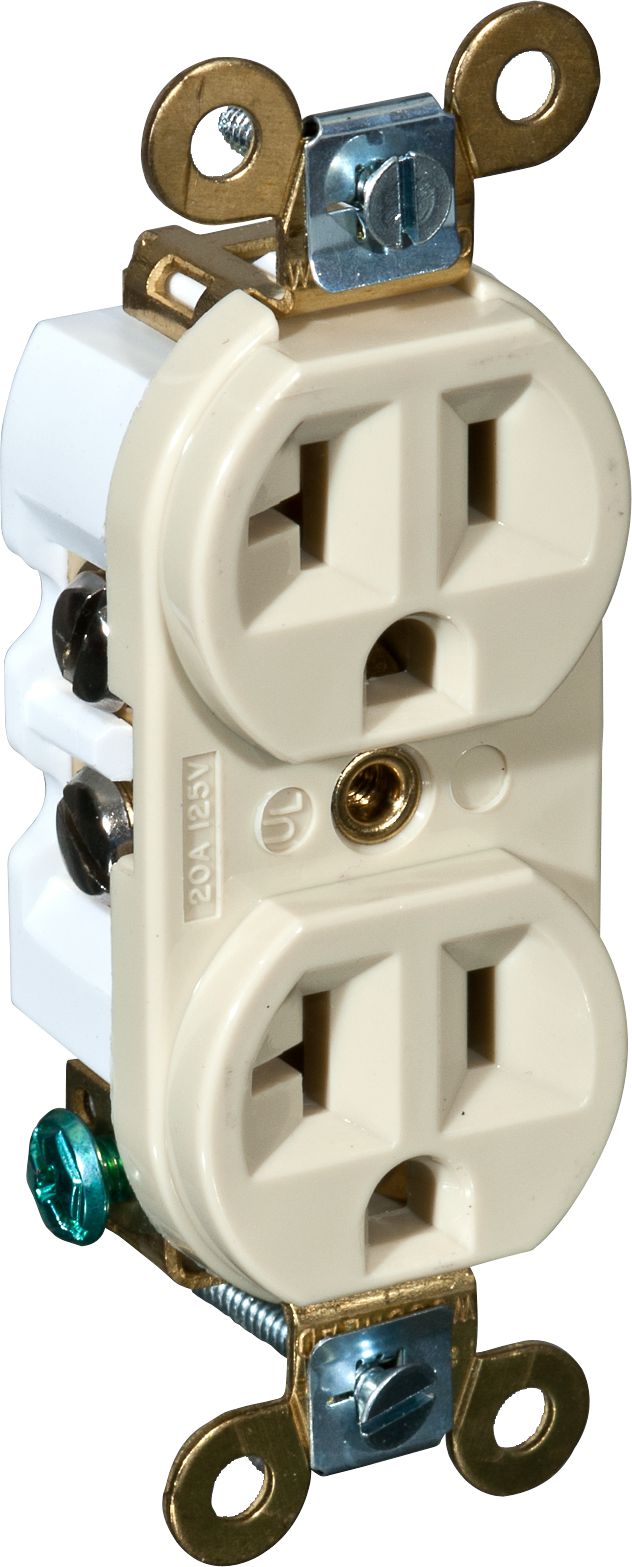

Industrial Duty Duplex Receptacle, 20 Amps, 125 Volts, Ivory, NEMA 5-20R
(Pack of
1)
SKU:87230 Item#: 87230
• All-nylon housing and faceplate are sonically welded together to form a solid one-piece body
• Self-grounding spring clip attaches to box mounting screw to assure reliable grounding
• The yoke and ground contacts are one continuous piece of heavy gauge brass for superior conductivity and spring tension life
• Line contacts have triple-wipe and ground contacts have double-wipe connection points
• Solid center rivet provides positive grounding path
• No. 10 ground screws increase safety along the grounding path
• Eight back and four side openings for back and side wiring – accepts wire sizes up to 10 Ga.
• For high-use industrial and commercial applications
Couldn't load pickup availability
Catalog page#: 17-89
Frequently Bought Together
Heat Shrink Tubing 18 to 12 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
DT Series Receptacle 13A 2 Contacts
Couldn't load pickup availability
Locking Receptacle 20A 250V
Couldn't load pickup availability
Industrial Duty SAF-T Connect Connector 15A 125V
Couldn't load pickup availability
Industrial Duty Locking Plug 20A
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Universal Toggle Switch DPDT 20A 125V On-On
Couldn't load pickup availability
Industrial Duty Connector 20A 125V
Couldn't load pickup availability
Push-Pull Switch SPST 25A at 6V/15A at 12V Off-On
Couldn't load pickup availability
Product Description
• All-nylon housing and faceplate are sonically welded together to form a solid one-piece body• Self-grounding spring clip attaches to box mounting screw to assure reliable grounding
• The yoke and ground contacts are one continuous piece of heavy gauge brass for superior conductivity and spring tension life
• Line contacts have triple-wipe and ground contacts have double-wipe connection points
• Solid center rivet provides positive grounding path
• No. 10 ground screws increase safety along the grounding path
• Eight back and four side openings for back and side wiring – accepts wire sizes up to 10 Ga.
• For high-use industrial and commercial applications
Technical Specifications
| Item#: | 87230 |
|---|---|
| Style | Industrial-Duty Straight Blade Duplex Receptacles |
| Volts | 125 |
| Description | Duplex |
| NEMA Configuration | 5-20R |
| Color | Ivory |
| Approvals | UL, CSA |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.21 lb |
