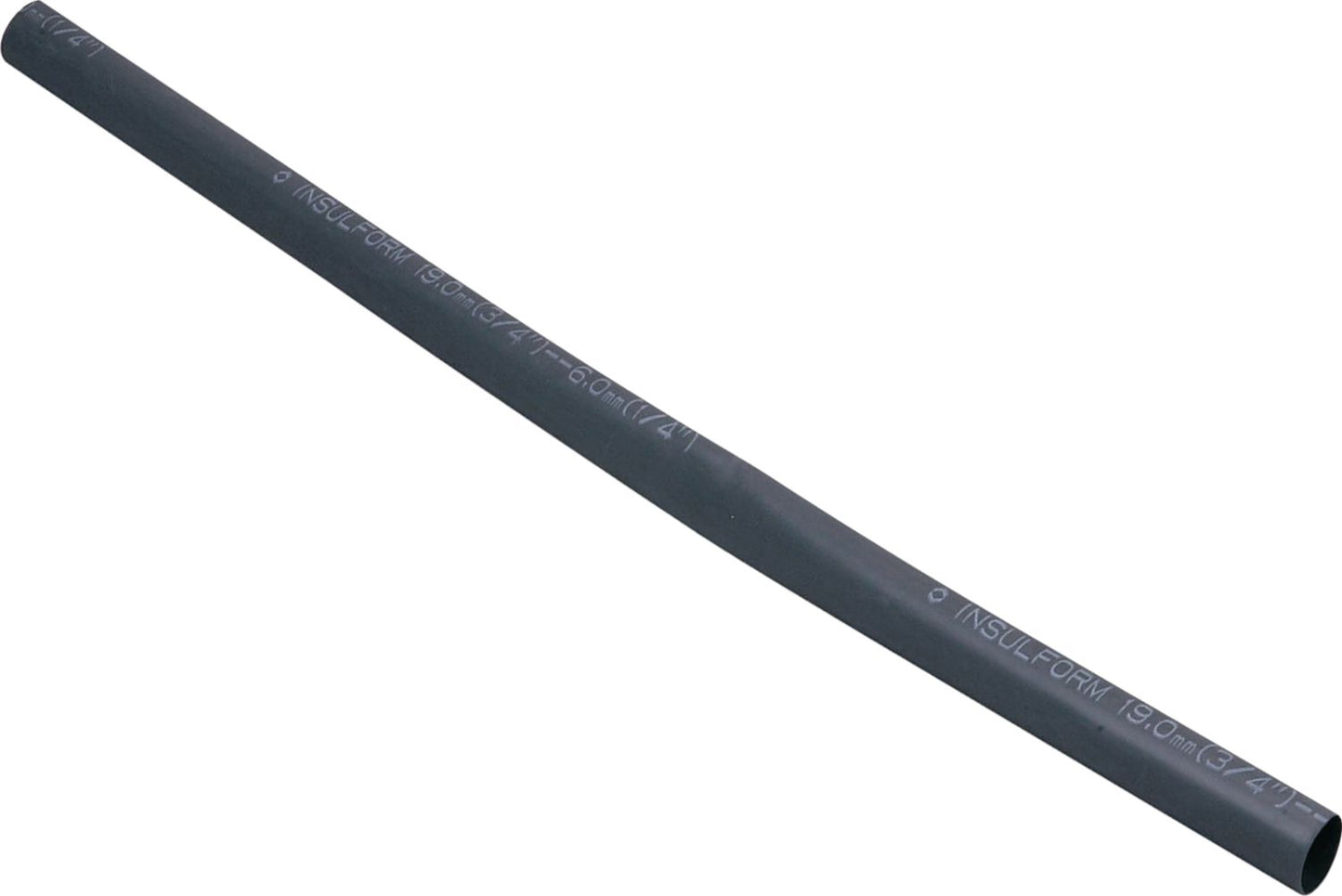

Insulform Heat Shrink Tubing 16 to 14 AWG Black
(Pack of
5.0)
• 3:1 shrink ratio
• Seals and helps protect electrical connections against failure due to water, moisture, corrosion, vibration, strain and abrasion
• The inner wall melts and adheres to the wire or cable insulation, encapsulating the connection; the outer wall shrinks, providing strength with flexibility and abrasion resistance
• Unaffected by most oils, fuels, solvents, chemicals and road salts
• High dielectric strength: 5,100 – 21,300V/mil minimum, depending on tubing diameter and amount of shrinkage
• Flame-resistant – meets CSA (OFT) and UL flammability ratings
• Easy to apply, low shrink temperature: 230°F (110°C)
• High tensile strength: 1,500 PSI minimum
• Wide continuous temperature range: –67°F to +230°F (–55°C to +110°C)
• Rated at 600V, 125°C• Meets MIL Specification 123053/4, Class 3
Applications
• Communications wire/antenna cable
• Instrumentation/electronics
• Vehicular electrical splices
• Biomedical instruments
• Solder and crimp joints
• Wire/cable strain relief
• Power cable splices
• Harness jackets
• Insulate splices
• Insulate tools
• Buss bars
• Burial capable
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 17-32
Frequently Bought Together
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 2 to 4/0 AWG Red
Couldn't load pickup availability
Heat Shrink Tubing 30 to 18 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 16 to 14 AWG Black
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Heat Shrink Tubing 8 to 2 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 12 to 6 AWG Black
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 1" ID 25'
Couldn't load pickup availability
Product Description
• 3:1 shrink ratio• Seals and helps protect electrical connections against failure due to water, moisture, corrosion, vibration, strain and abrasion
• The inner wall melts and adheres to the wire or cable insulation, encapsulating the connection; the outer wall shrinks, providing strength with flexibility and abrasion resistance
• Unaffected by most oils, fuels, solvents, chemicals and road salts
• High dielectric strength: 5,100 – 21,300V/mil minimum, depending on tubing diameter and amount of shrinkage
• Flame-resistant – meets CSA (OFT) and UL flammability ratings
• Easy to apply, low shrink temperature: 230°F (110°C)
• High tensile strength: 1,500 PSI minimum
• Wide continuous temperature range: –67°F to +230°F (–55°C to +110°C)
• Rated at 600V, 125°C• Meets MIL Specification 123053/4, Class 3
Applications
• Communications wire/antenna cable
• Instrumentation/electronics
• Vehicular electrical splices
• Biomedical instruments
• Solder and crimp joints
• Wire/cable strain relief
• Power cable splices
• Harness jackets
• Insulate splices
• Insulate tools
• Buss bars
• Burial capable
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | P68795 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 16-14 AWG |
| Diameter | 1/4 " |
| Length | 2 ft |
| Color | Black |
| I.D. Before Shrinkage | 1/4 " |
| I.D. After Shrinkage | 3/32 " |
| Dielectric Strength | 5,100 - 21,300 min V/mm |
| Voltage Rating | 600 V |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 230 F |
| Tensile Strength | 1,500 PSI |
| Approvals | UL, CSA |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.07 lb |
