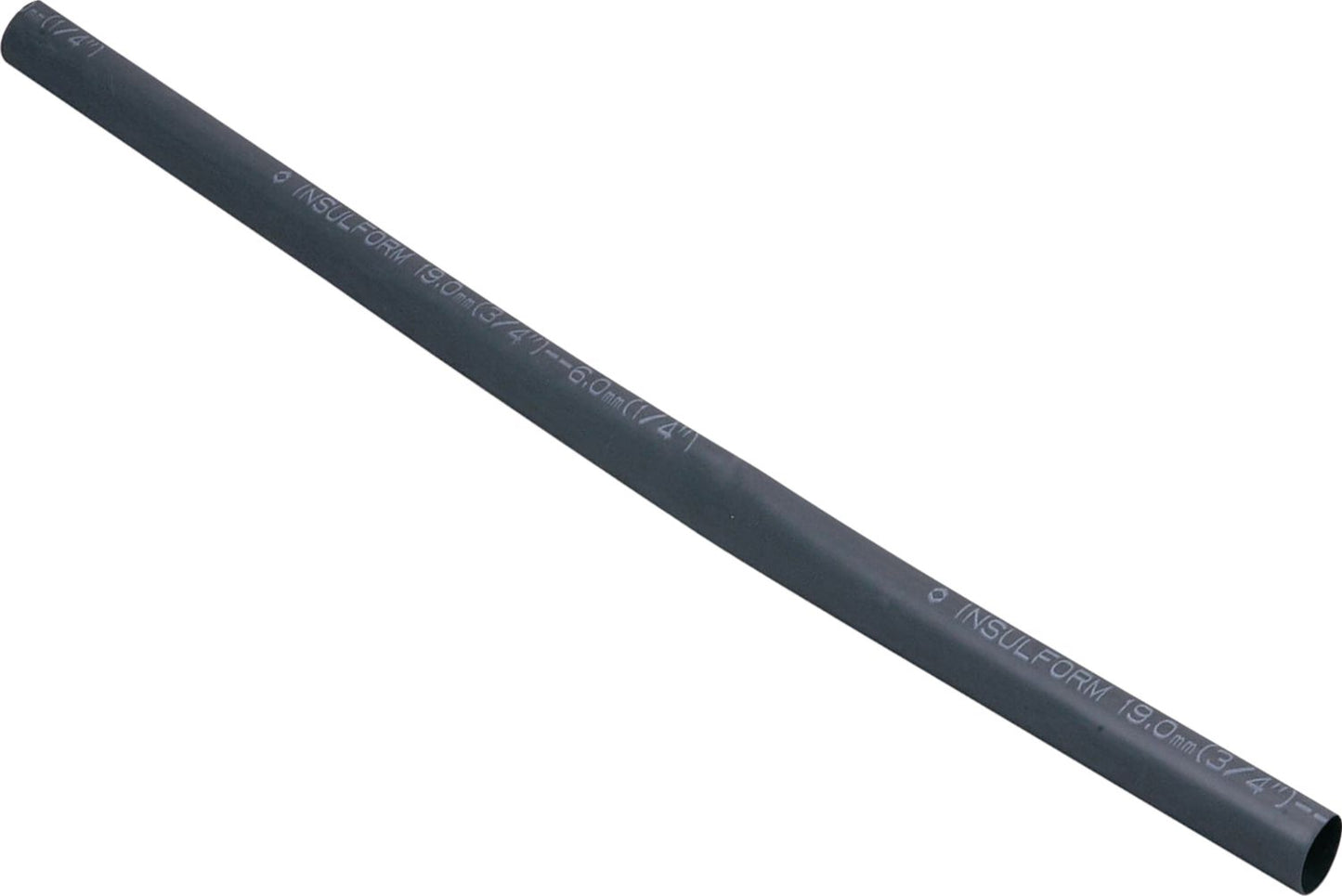

Insulform Heat Shrink Tubing, 22 to 18 AWG, Black, 3/16" Diameter, 2' Length, 3/16" ID Before and 1/16" ID After Shrinkage
(Pack of
5)
SKU:P68790 Item#: P68790
• 3:1 shrink ratio
• Seals and helps protect electrical connections against failure due to water, moisture, corrosion, vibration, strain and abrasion
• The inner wall melts and adheres to the wire or cable insulation, encapsulating the connection; the outer wall shrinks, providing strength with flexibility and abrasion resistance
• Unaffected by most oils, fuels, solvents, chemicals and road salts
• High dielectric strength: 5,100 – 21,300V/mil minimum, depending on tubing diameter and amount of shrinkage
• Flame-resistant – meets CSA (OFT) and UL flammability ratings
• Easy to apply, low shrink temperature: 230°F (110°C)
• High tensile strength: 1,500 PSI minimum
• Wide continuous temperature range: –67°F to +230°F (–55°C to +110°C)
• Rated at 600V, 125°C• Meets MIL Specification 123053/4, Class 3
Applications
• Communications wire/antenna cable
• Instrumentation/electronics
• Vehicular electrical splices
• Biomedical instruments
• Solder and crimp joints
• Wire/cable strain relief
• Power cable splices
• Harness jackets
• Insulate splices
• Insulate tools
• Buss bars
• Burial capable
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
Catalog page#: 17-32
Frequently Bought Together
Cable Seal Green 20-18 AWG 20A 12V
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
Connector Housing 20A 2-Wire Tower
Couldn't load pickup availability
Adhesive Heat Shrink Tubing 16 to 8 AWG Clear/Blue
Couldn't load pickup availability
3/8 x 3'' Red Thermapod Sealflex Heat Shrink Tube
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 2 to 4/0 AWG Black
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Black
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.413" ID 25'
Couldn't load pickup availability
Rubber Grommet 1/2" ID
Couldn't load pickup availability
Product Description
• 3:1 shrink ratio• Seals and helps protect electrical connections against failure due to water, moisture, corrosion, vibration, strain and abrasion
• The inner wall melts and adheres to the wire or cable insulation, encapsulating the connection; the outer wall shrinks, providing strength with flexibility and abrasion resistance
• Unaffected by most oils, fuels, solvents, chemicals and road salts
• High dielectric strength: 5,100 – 21,300V/mil minimum, depending on tubing diameter and amount of shrinkage
• Flame-resistant – meets CSA (OFT) and UL flammability ratings
• Easy to apply, low shrink temperature: 230°F (110°C)
• High tensile strength: 1,500 PSI minimum
• Wide continuous temperature range: –67°F to +230°F (–55°C to +110°C)
• Rated at 600V, 125°C• Meets MIL Specification 123053/4, Class 3
Applications
• Communications wire/antenna cable
• Instrumentation/electronics
• Vehicular electrical splices
• Biomedical instruments
• Solder and crimp joints
• Wire/cable strain relief
• Power cable splices
• Harness jackets
• Insulate splices
• Insulate tools
• Buss bars
• Burial capable
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | P68790 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 22-18 AWG |
| Diameter | 3/16 " |
| Length | 2 ft |
| Color | Black |
| I.D. Before Shrinkage | 3/16 " |
| I.D. After Shrinkage | 1/16 " |
| Dielectric Strength | 5,100 - 21,300 min V/mm |
| Voltage Rating | 600 V |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 230 F |
| Tensile Strength | 1,500 PSI |
| Approvals | UL, CSA |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.07 lb |
