Kup-L-Tap Connector, 4 to 4/0 AWG Main, 14 to 6 AWG Tap, 1" Width, 1.42" Depth
(Pack of 1)

SKU:97756 Item#: 97756

Lawson Products

• Installs faster than any other cable tap
• Body is tough, resilient glass-filled nylon
• Factory-installed silicone lubricating compound fills voids, keeping contamination out
• Bolts and top and bottom plates are fully insulated from the conductor and contact teeth by molded nylon sleeves
• Extra hard tin-coated copper contact teeth easily penetrate most types of insulation – no cable stripping required
• Dual-rated for copper and aluminum conductors
• Can be installed on energized conductor
• Requires no cover or tape
• Runs cooler than the conductor
• Bolt tightens with just a wrench
• A horizontal line grid provides a visual guide for proper installation of conductors

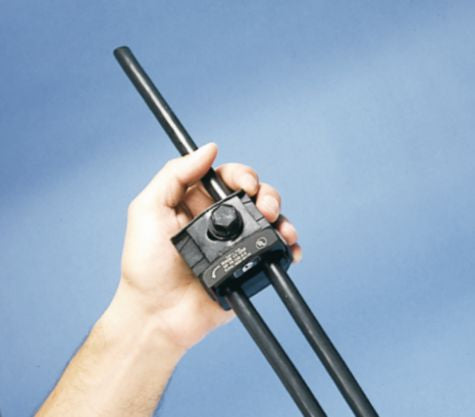

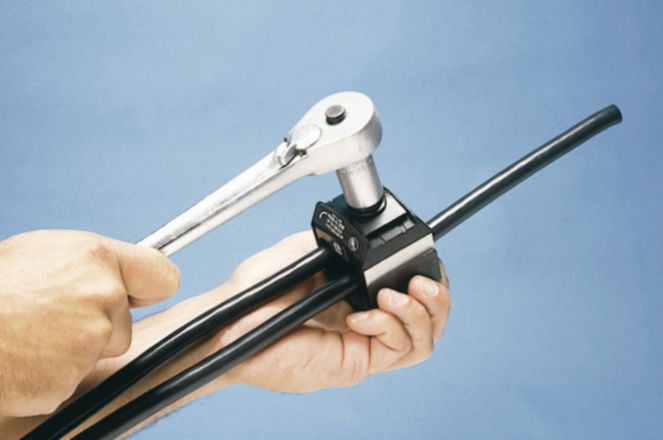

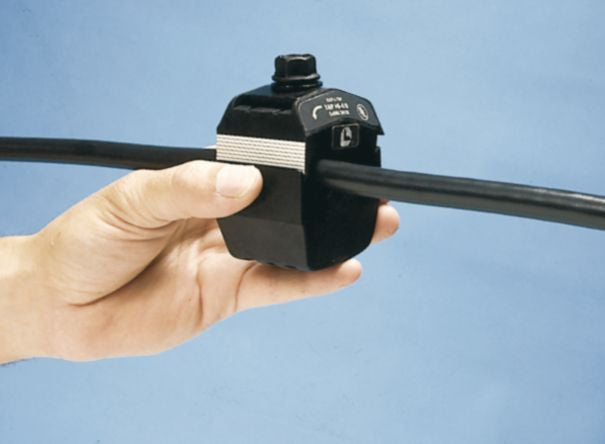

Installation Instructions1. Loosen connector bolt(s) and separate halves.2. Mount the main cable in the main groove of the connector by placing the connector halves over the cable.3. Insert the squared-off tap cable into the tap groove until it contacts the end tab. Tighten the bolt(s) until securely fastened.4. Completed installation.

Check Availability

Quantity

Catalog page#: 17-69

Frequently Bought Together

Product Description

Technical Specifications

Item#:	97756
Wire Range Main	4-4/0
Wire Range Tap	14-6
Volts	600 V
Width	1 "
Height	1.87 "
Depth	1.42 "
Torque Recommendation	13 lb
Approvals	UL, CSA
Style	Kup-L-Tap
Type	Electrical Connectors
UNSPSC #:	39121409
TAA Compliant:	No
Weight:	0.16 lb
