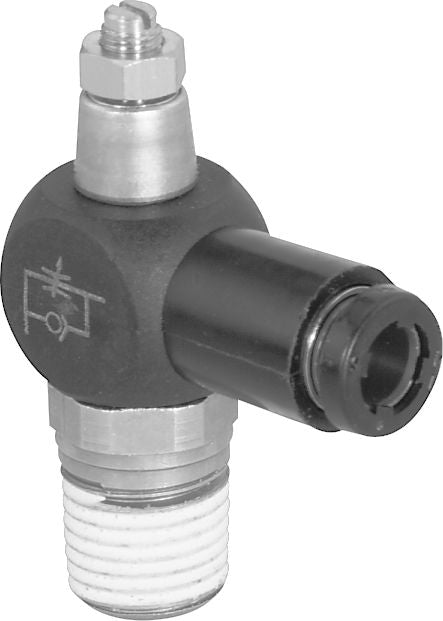

Compact Meter Out Flow Control Regulator, Nylon, 1/4 x 1/4", Tube x NPT, 15 to 145PSI
(Pack of
1)
SKU:54443P Item#: 54443P
Manufactured with robust materials, compact flow control regulators ensure excellent performance of flow and are perfectly suited for reduced spaces due to their small size. The sensitivity of the adjustment screw provides very precise air flow control and regulation. A locking nut guarantees stability of adjustment against vibration tampering of the flow setting. The adjustment screw and locking nut have been designed for easy manipulation, by hand. Adjustment can be made with a screwdriver and locking by use of a wrench.
• Working temperature: 30°F to +160°F
• Working pressure: 15 to 145 PSI
• Sutable fluids: Compressed air
• Construction:
– Body: Glass-reinforced nylon 6.6 or brass
– Gripping ring: Stainless steel
– Adjustment screw: Nickel-plated brass
– Locking nut: Nickel-plated brass
– Base: Nickel-plated brass with thread sealant on tapered components
Photos are representations of product.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Forged Body Ball Valve Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Square Head Plug Steel Black 1/4-18
Couldn't load pickup availability
Merchant Coupling Steel 3/4-14 x 3/4-14
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/4"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x 1/4"
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 1/2"
Couldn't load pickup availability
Nylon Hose Guard 0.91" ID x 25' Length
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
Manufactured with robust materials, compact flow control regulators ensure excellent performance of flow and are perfectly suited for reduced spaces due to their small size. The sensitivity of the adjustment screw provides very precise air flow control and regulation. A locking nut guarantees stability of adjustment against vibration tampering of the flow setting. The adjustment screw and locking nut have been designed for easy manipulation, by hand. Adjustment can be made with a screwdriver and locking by use of a wrench.• Working temperature: 30°F to +160°F
• Working pressure: 15 to 145 PSI
• Sutable fluids: Compressed air
• Construction:
– Body: Glass-reinforced nylon 6.6 or brass
– Gripping ring: Stainless steel
– Adjustment screw: Nickel-plated brass
– Locking nut: Nickel-plated brass
– Base: Nickel-plated brass with thread sealant on tapered components
Photos are representations of product.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 54443P |
|---|---|
| Manufacturer Model #: | 7065 56 14 |
| Style | Flow Control Regulator |
| Configuration | Compact Meter Out |
| Tube Size | 1/4 " |
| Thread Size | 1/4 " |
| Thread Style | NPT |
| Material | Nylon |
| Wrench Size | .63 " |
| Working Pressure | 15 to 145 PSI |
| Temperature Range | 30 to 160 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
