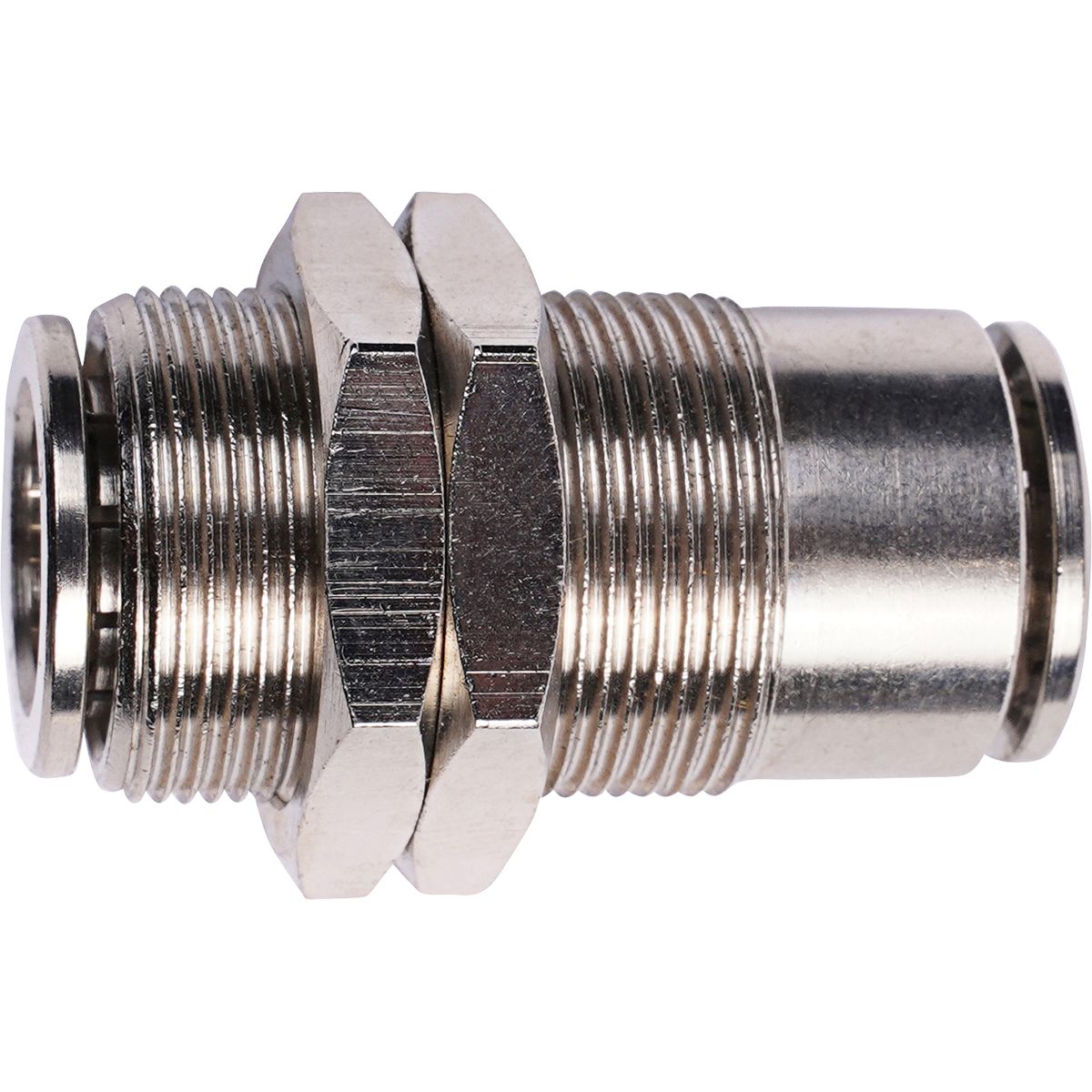

Metric bulkhead brass union push-on connector 5mm tube
(Pack of
1)
SKU:DY41737005 Item#: DY41737005
• Use on instrumentation, circuit, oil, coolant and pneumatic lines• Compact one-piece fittings for use with polyethylene, nylon, polyurethane (90 durometer and over), polybutylene and other soft metal tubing• Quick connect and disconnect feature saves over 75% of assembly time of standard compression fittings• Provide 60% more flow area than conventional fittings with internal tube supports.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Square Head Plug Steel Black 1/4-18
Couldn't load pickup availability
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"
Couldn't load pickup availability
Merchant Coupling Steel 3/4-14 x 3/4-14
Couldn't load pickup availability
Ball Check Grease Fitting 90°
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/4"
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 6mm x 1/4"
Couldn't load pickup availability
Copper Soft Annealed Tubing 3/8" OD x 25'
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 3/8"
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Product Description
• Use on instrumentation, circuit, oil, coolant and pneumatic lines• Compact one-piece fittings for use with polyethylene, nylon, polyurethane (90 durometer and over), polybutylene and other soft metal tubing• Quick connect and disconnect feature saves over 75% of assembly time of standard compression fittings• Provide 60% more flow area than conventional fittings with internal tube supports.Technical Specifications
| Item#: | DY41737005 |
|---|---|
| Style | Push-to-Connect |
| Configuration | Bulkhead Union |
| Tube Size | 5 mm |
| Thread Size | M12x1 |
| Thread Style | Metric |
| Material | Nickel-Plated Brass |
| Wrench Size | 17 mm |
| Bulkhead Nut Size | 17 mm |
| Panel Hole Diameter | 13 mm |
| Panel Thickness | 10.5 mm |
| Mounting Hole Diameter | 13 mm |
| Working Pressure | Up To Maximum Working Pressure of Tubing Being Used |
| Temperature Range | -40 to +200 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
| Weight: | 0.06 lb |
