Home Circuit Breakers Mid-Range Panel-Mount Circuit Breaker Type III 10A
Circuit Breakers

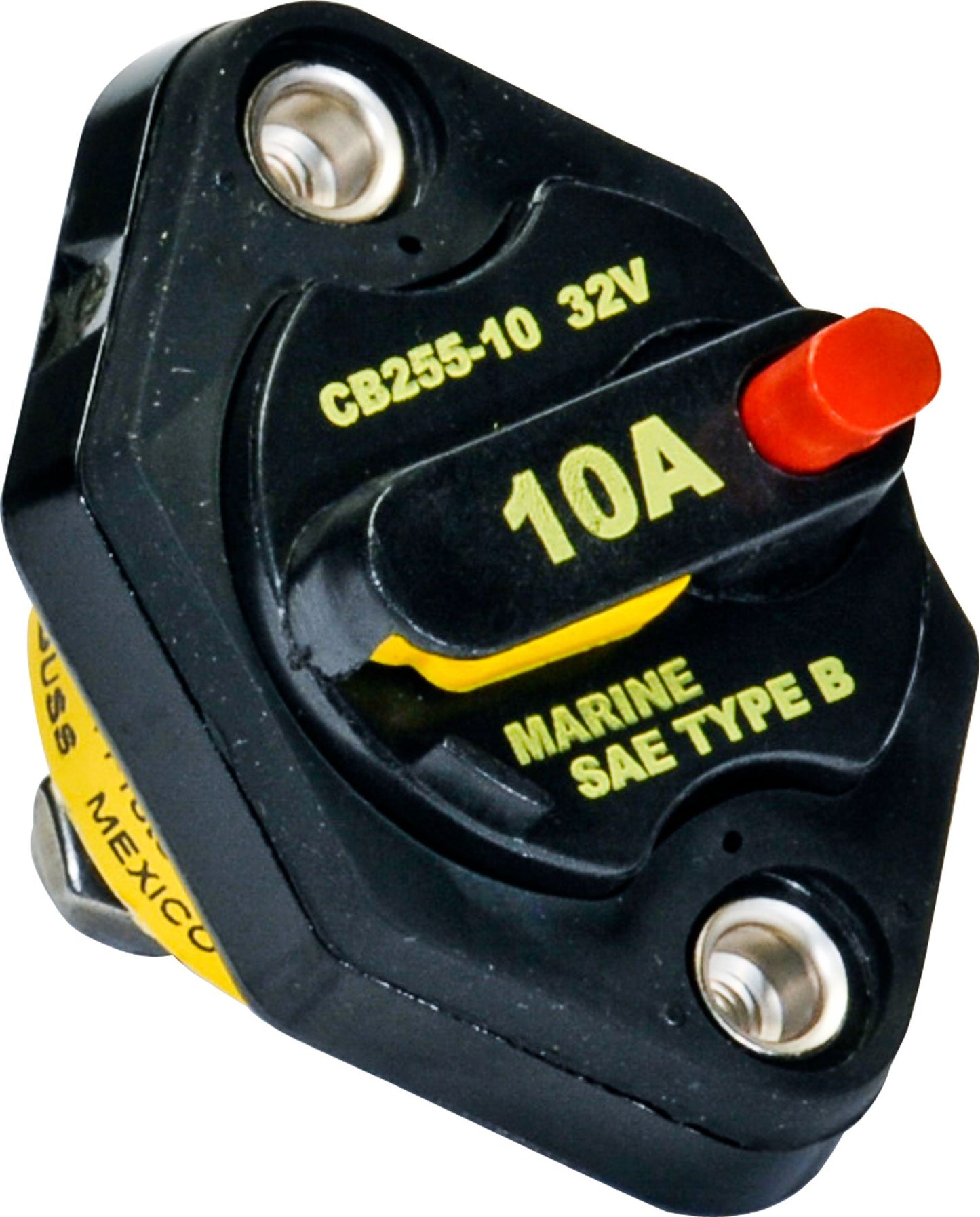

Mid-Range Panel-Mount Circuit Breaker Type III 10A
(Pack of 1)

Lawson Products

• Available in either Type I Automatic Reset or Type III Manual Reset with push-to-trip feature
• Rounded profile body and cover boss allow for 3-hole panel cutout mounting
• Standard mounted centers, 8–32 threaded mounting inserts
• Type III Manual Reset type allows opening the circuit path without disconnecting it from the power source
• Voltage rating: 32V DC, for use on 6V, 12V and 24V systems• Ignition protected (ABYC E-9/SAE J1171)
• For either drop-in or rear access mounting
• Applications include marine, RV and agricultural vehicles

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 19-14

Frequently Bought Together


Post-Style Circuit Breaker with Bracket 20A 12V

Item#: 89105

Plug-In Circuit Breaker Type II 15A

Item#: 60734

ATC Circuit Breaker Type II 30A 14V

Item#: 29858

Cable Tie 7.31" Black

Item#: 85487

Connector Housing 20A 2-Wire Tower

Item#: 96898

Stepdown Butt Connector 24 to 22/22 to 18 AWG

Item#: 1495187

ATO/ATC Fuse 30A Green

Item#: 1145862

MINI Fuse 4A Pink

Item#: 95699

ATO/ATC Fuse 5A Tan

Item#: 1145973

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539

Self-Drilling Screw Hex Head #10-16 x 3/4"

Item#: 84931

Product Description

• Available in either Type I Automatic Reset or Type III Manual Reset with push-to-trip feature
• Rounded profile body and cover boss allow for 3-hole panel cutout mounting
• Standard mounted centers, 8–32 threaded mounting inserts
• Type III Manual Reset type allows opening the circuit path without disconnecting it from the power source
• Voltage rating: 32V DC, for use on 6V, 12V and 24V systems• Ignition protected (ABYC E-9/SAE J1171)
• For either drop-in or rear access mounting
• Applications include marine, RV and agricultural vehicles

Technical Specifications

Item#: 50256
Style Mid-Range Panel-Mounted Circuit Breakers
Amperage 10 A
Volts 32 DC
Approvals Ignition protected (ABYC E-9/SAE J1171)
Description Type III Manual Reset
Type Electrical
UNSPSC #: 39121601
TAA Compliant: Yes
Weight: 0.11 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
