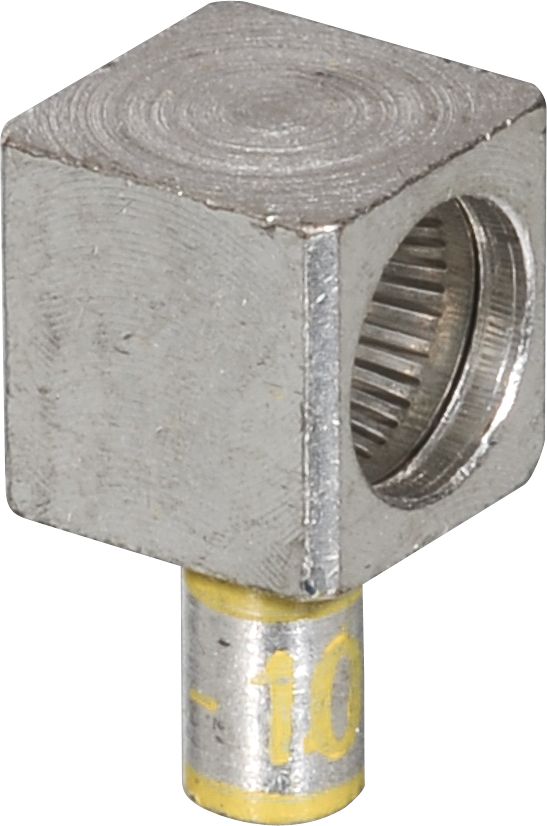

Motor Pigtail Connector, 12 to 10 AWG, Female, Copper, Tin Plate, 2 Body Size
(Pack of
5)
SKU:94389 Item#: 94389
• Easy, error-free installation – eliminates bolting, taping and loose connections
• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Frequently Bought Together
Female Quick Slide Terminal 16 to 14 AWG Clear
Couldn't load pickup availability
MINI Fuse 15A Blue
Couldn't load pickup availability
Heat Shrink Tubing 18 to 12 AWG Black
Couldn't load pickup availability
Motor Stub Splice Insulator 14 to 10 AWG
Couldn't load pickup availability
Standard One-Hole Lug 4/0 AWG Purple
Couldn't load pickup availability
Motor Pigtail Connector 12 to 10 AWG
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Step-Down Butt Connector 16 to 14/22 to 18 AWG
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Right Dress Stainless Steel Cleaner and Polish
Couldn't load pickup availability
Ice Melter with Propel® 65lb
Couldn't load pickup availability
9/16" Dia. Fractional Drill Bit with Reduced 1/2" Shank, 118o Point
Couldn't load pickup availability
Right Dress Stainless Steel Cleaner and Polish
Couldn't load pickup availability
Ice Melter with Propel® 65lb
Couldn't load pickup availability
9/16" Dia. Fractional Drill Bit with Reduced 1/2" Shank, 118o Point
Couldn't load pickup availability
Product Description
• Easy, error-free installation – eliminates bolting, taping and loose connections• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Technical Specifications
| Item#: | 94389 |
|---|---|
| Type | Industrial Connectors |
| Connector Type | Female |
| Wire Gauge | 12-10 AWG |
| Body Size | 2 |
| Style | Pigtails |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.15 lb |
