Home Fasteners Multi-Grip Rivet 120° Countersunk Head 3/16"
Fasteners

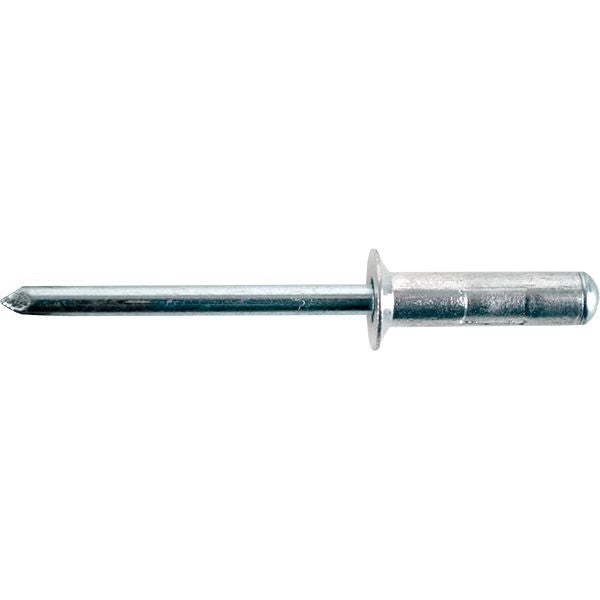

Multi-Grip Rivet, 120° Countersunk Head, Aluminum Body/Steel Mandrel, 3/16" Diameter, 0.25 to 0.5" Grip Range, 0.69" Body Length
(Pack of 500)

Lawson Products

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 7-12

Frequently Bought Together


SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435

Hex Nut Grade 8 Alloy Steel 3/8-16

Item#: A102

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104

Multi-Grip Rivet Dome Head Aluminum 3/16"

Item#: 1543597

Multi-Grip Rivet Large Flange Head Aluminum 3/16"

Item#: 1543594

Multi-Grip Rivet 120° Countersunk Head 3/16"

Item#: 1543587

Open End Rivet Dome Head Aluminum 1/8"

Item#: 1950

Open End Rivet Dome Head Aluminum 3/16"

Item#: 483

Open End Rivet 120° Countersunk Head Steel 1/8"

Item#: 488

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: 88447

Nylon Cable Tie 4" Black

Item#: 94609

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: 88446

Product Description

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Technical Specifications

Item#: 1543589
Type Multi-Grip
Head Style 120° Countersunk Head
Material Body/Mandrel Aluminum/Steel
Diameter 3/16 "
Grip Range 0.250 – 0.500 "
Hole Size 0.192 – 0.200 "
Head Diameter 0.345 "
Head Height 0.051 "
Body Length 0.690 "
Shear Strength 350 lb
Tensile Strength 530 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 3.23 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
