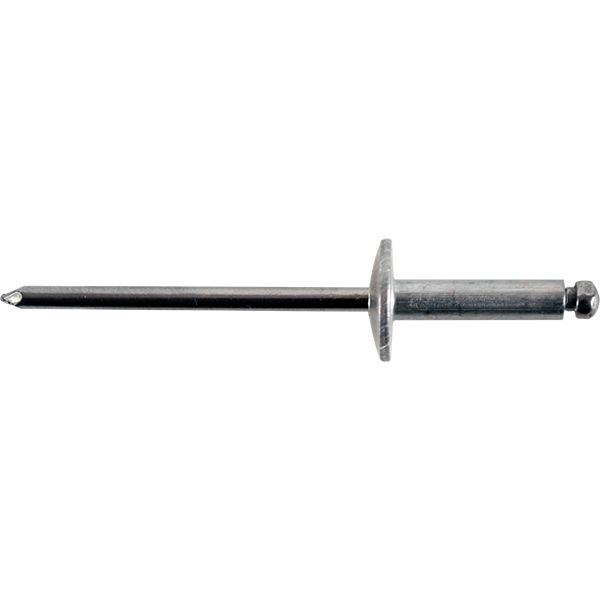

Open End Rivet Large Flange Head Aluminum 3/16"
(Pack of 100.0)

Lawson Products

Large Flange
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog Page#: 7-7

Frequently Bought Together


USS Flat Washer Low Carbon Steel 1/4"

Item#: FA501

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512

USS Flat Washer Thru-Hardened Steel 1/2"

Item#: 88449

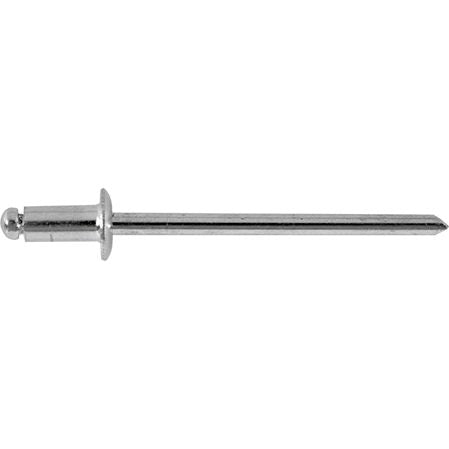

Open End Rivet Dome Head Aluminum 1/8"

Item#: 1965

Open End Rivet Large Flange Head Aluminum 1/8"

Item#: 41631

Open End Rivet Large Flange Head Aluminum 1/8"

Item#: 41629

Open End Rivet Dome Head Stainless Steel 1/8"

Item#: 82342

Open End Rivet Dome Head Aluminum 5/32"

Item#: 1954

Open End Rivet Dome Head Stainless Steel 1/8"

Item#: 82343

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

SAE Flat Washer Thru-Hardened Steel 5/8"

Item#: 88441

Lock Washer Alloy Steel 3/8"

Item#: A530

Product Description

Large Flange
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application

Technical Specifications

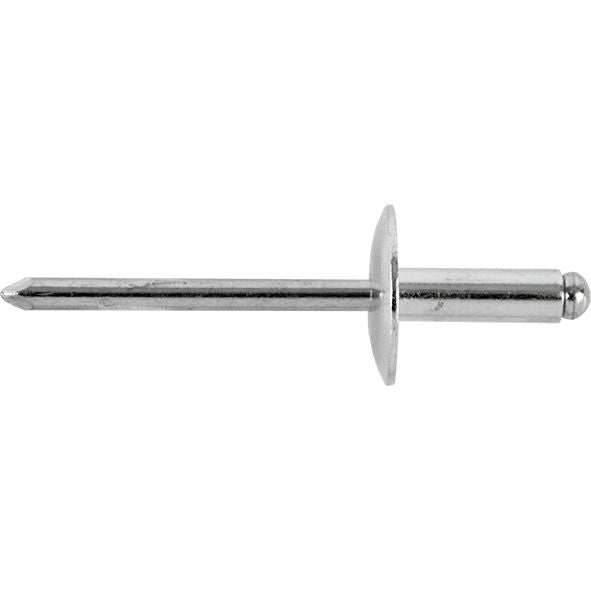

Item#: 1962
Type Open End
Head Style Large Flange
Material Body/Mandrel Aluminum/Steel
Diameter 3/16 "
Grip Range 0.251 – 0.375 "
Industry Number 66
Hole Size 0.192 – 0.196 "
Drill Size #11
Head Diameter 0.625 "
Head Height 0.092 "
Body Length 0.575 "
Shear Strength 380 lb
Tensile Strength 500 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.8 lb
