Home Fasteners Multi-Grip Rivet Dome Head Aluminum 3/16"
Fasteners

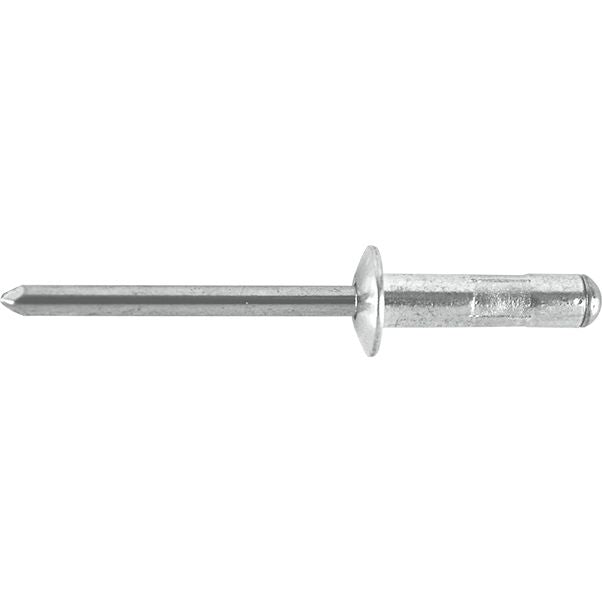

Multi-Grip Rivet Dome Head Aluminum 3/16"
(Pack of 100.0)

Lawson Products

Dome Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog Page#: 7-12

Frequently Bought Together


Hex Nut Grade 8 Alloy Steel 7/16-14

Item#: A103

Hex Nut Grade 8 Steel 1/4-20

Item#: FA68400

Hex Nut Grade 8 Steel 1/2-13

Item#: FA68404

Multi-Grip Rivet 120° Countersunk Head 5/32"

Item#: 1543585

Multi-Grip Rivet 120° Countersunk Head 3/16"

Item#: 1543589

Multi-Grip Rivet Dome Head Aluminum 5/32"

Item#: 1980

Pull Rivet Dome Head Aluminum 5/32"

Item#: P61723M01

Open End Rivet Large Flange Head Aluminum 1/8"

Item#: 41628

HuckBolt® C6L® Rivet Lockbolt Carbon Steel 3/8"

Item#: 1504942

Non-Chlorinated Brake Parts Cleaner 14oz

Item#: KT14126

Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"

Item#: 634

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

Product Description

Dome Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Technical Specifications

Item#: 1543599
Type Multi-Grip
Head Style Dome Head
Material Body/Mandrel Aluminum/Steel
Diameter 3/16 "
Grip Range 0.250 – 0.500 "
Hole Size 0.192 – 0.200 "
Head Diameter 0.386 "
Head Height 0.057 "
Body Length 0.666 "
Shear Strength 350 lb
Tensile Strength 530 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.665 lb
