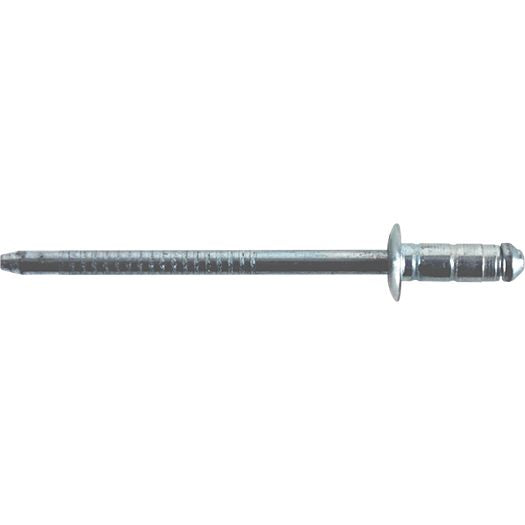

Multi-Grip Rivet Dome Head Steel 1/8"
(Pack of
100.0)
Dome Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 7-13
Frequently Bought Together
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Multi-Grip Rivet 120° Countersunk Head 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/32"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Multi-Grip Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Product Description
Dome Head• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 1543590 |
|---|---|
| Type | Multi-Grip |
| Head Style | Dome Head |
| Material Body/Mandrel | Steel/Steel |
| Diameter | 1/8 " |
| Grip Range | 0.043 – 0.250 " |
| Hole Size | 0.129 – 0.133 " |
| Drill Size | #30 |
| Head Diameter | 0.283 " |
| Head Height | 0.033 " |
| Body Length | 0.355 " |
| Shear Strength | 340 lb |
| Tensile Strength | 385 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.33 lb |
