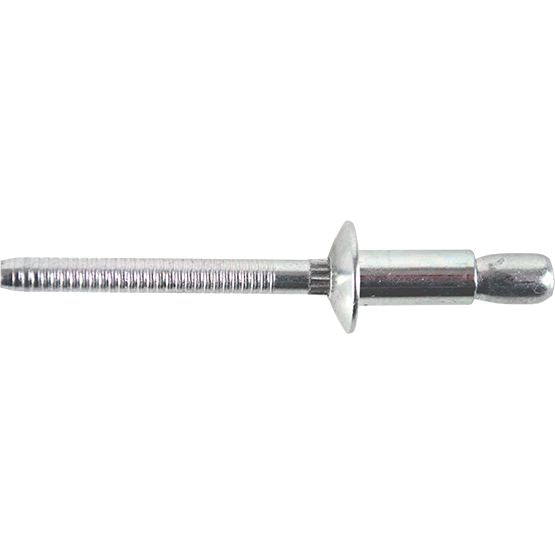

Structural Rivet Internal Lock Steel 1/4"
(Pack of
50.0)

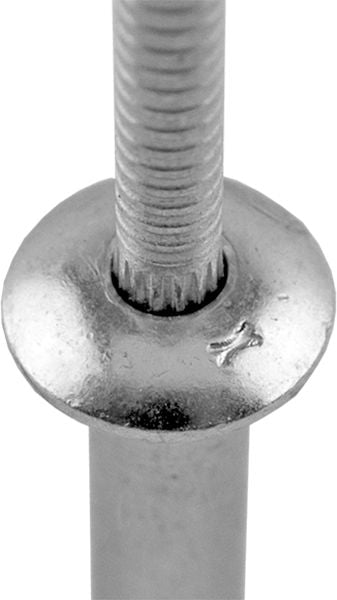

Dome Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock insures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 7-17
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 1/4"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Structural Rivet Internal Lock Dome Head SS 1/4"
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 3/16"
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
Product Description
Dome Head• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock insures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Technical Specifications
| Item#: | 90482 |
|---|---|
| Type | Structural – Internal Lock |
| Head Style | Dome Head |
| Material Body/Mandrel | Steel/Steel |
| Diameter | 1/4 " |
| Grip Range | 0.080 – 0.625 " |
| Hole Size | 0.261 – 0.276 " |
| Drill Size | G |
| Head Diameter | 0.525 " |
| Head Height | 0.117 " |
| Body Length | 0.810 " |
| Shear Strength | 2,400 lb |
| Tensile Strength | 1,850 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 1.08 lb |
