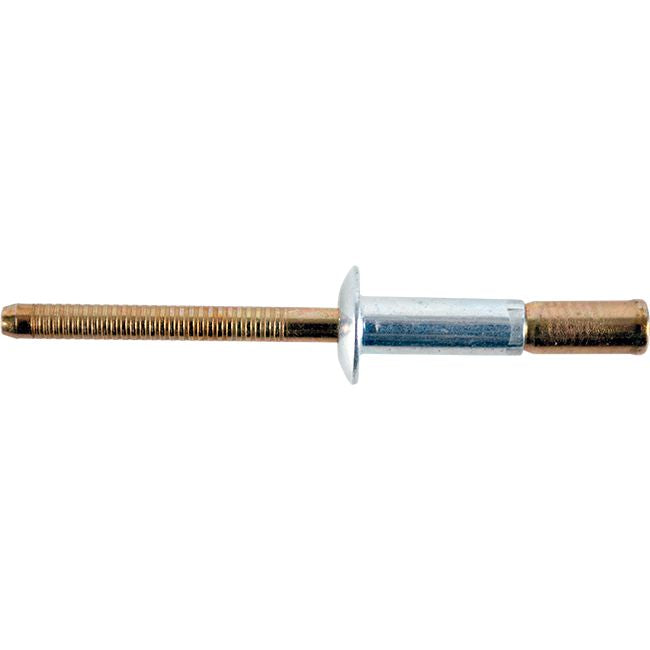

Tigerbolt® Structural Rivet External Lock 3/16"
(Pack of
50.0)

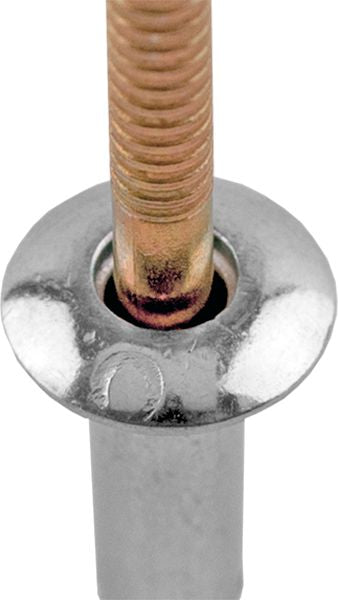

Dome Head

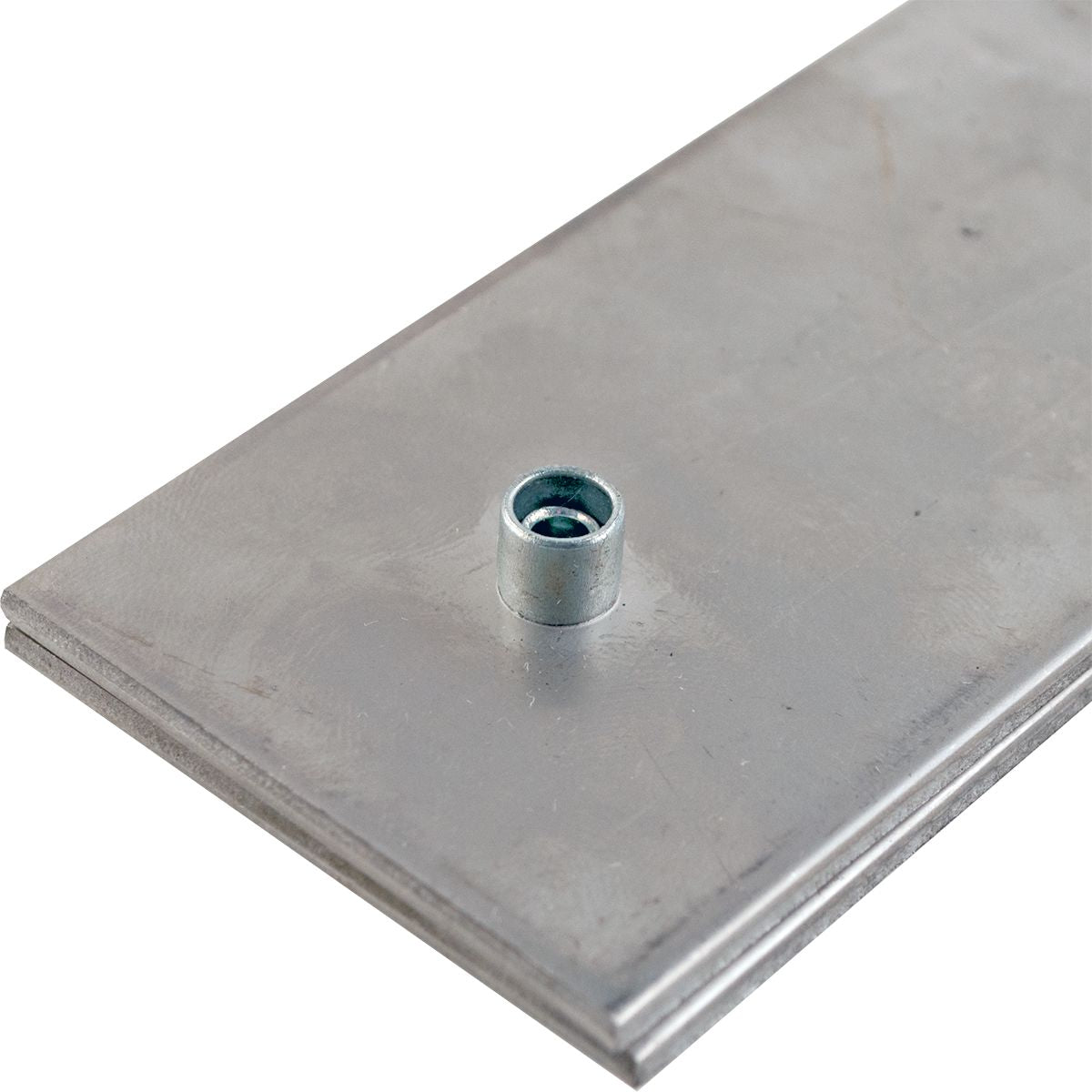

• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Interchangeable with Monobolts®
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• A special nosepiece is required to install External Locking Structural Rivets
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 7-19
Frequently Bought Together
Hex Cap Screw Grade 8 1/4-20 x 1"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 5/16-18
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 3/16"
Couldn't load pickup availability
HuckBolt® C50L® Rivet Lockbolt Carbon Steel 1/2"
Couldn't load pickup availability
Replacement Jaw for 1543728 and 1543729 Tool
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 1"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 1/4"
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 3/16"
Couldn't load pickup availability
Product Description
Dome Head• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Interchangeable with Monobolts®
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• A special nosepiece is required to install External Locking Structural Rivets
Technical Specifications
| Item#: | 1543632 |
|---|---|
| Type | Structural – External Lock |
| Head Style | Dome Head |
| Material Body/Mandrel | Steel/Steel |
| Diameter | 3/16 " |
| Grip Range | 0.062 – 0.437 " |
| Hole Size | 0.194 – 0.204 " |
| Drill Size | #10 |
| Head Diameter | 0.400 " |
| Head Height | 0.090 " |
| Body Length | 0.360 " |
| Shear Strength | 1,438 lb |
| Tensile Strength | 1,147 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.53 lb |
