Home Fasteners Multi-Grip Rivet Dome Head Aluminum 1/8"
Fasteners

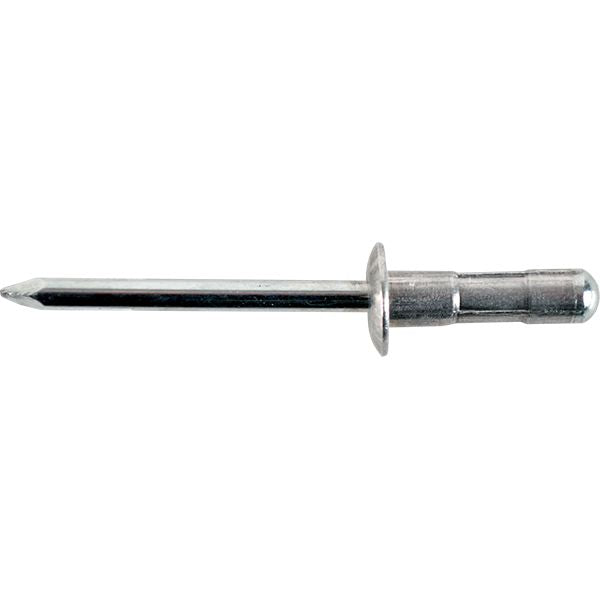

Multi-Grip Rivet, Dome Head, Aluminum Body/Steel Mandrel, 1/8" Diameter, 0.156 to 0.312" Grip Range, 0.438" Body Length
(Pack of 100)

Item#: 1979

Lawson Products

Dome Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Read More
Check Availability

Catalog page#: 7-12

Frequently Bought Together


USS Flat Washer Thru-Hardened Steel 1/4"

Item#: FA88445

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

Multi-Grip Rivet Large Flange Head Aluminum 3/16"

Item#: 1983

Multi-Grip Rivet Large Flange Head Aluminum 3/16"

Item#: 1984

Multi-Grip Rivet Large Flange Head Aluminum 3/16"

Item#: 1543592

Multi-Grip Rivet Large Flange Head Aluminum 3/16"

Item#: 1983

Open End Rivet Dome Head Aluminum 3/16"

Item#: 483

Open End Rivet Dome Head Steel 1/8"

Item#: 481

Waterproof Work Aqua Light 66 LED

Item#: DY80000105

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: 88445

High Solids Paints Gloss Black

Item#: 1509224

Product Description

Dome Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Technical Specifications

Item#: 1979
Type Multi-Grip
Head Style Dome Head
Material Body / Mandrel Aluminum/Steel
Diameter 1/8 "
Grip Range 0.156 – 0.312 "
Hole Size 0.129 – 0.138 "
Head Diameter 0.250 "
Head Height 0.037 "
Body Length 0.438 "
Shear Strength 165 lb
Tensile Strength 230 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.23 lb
