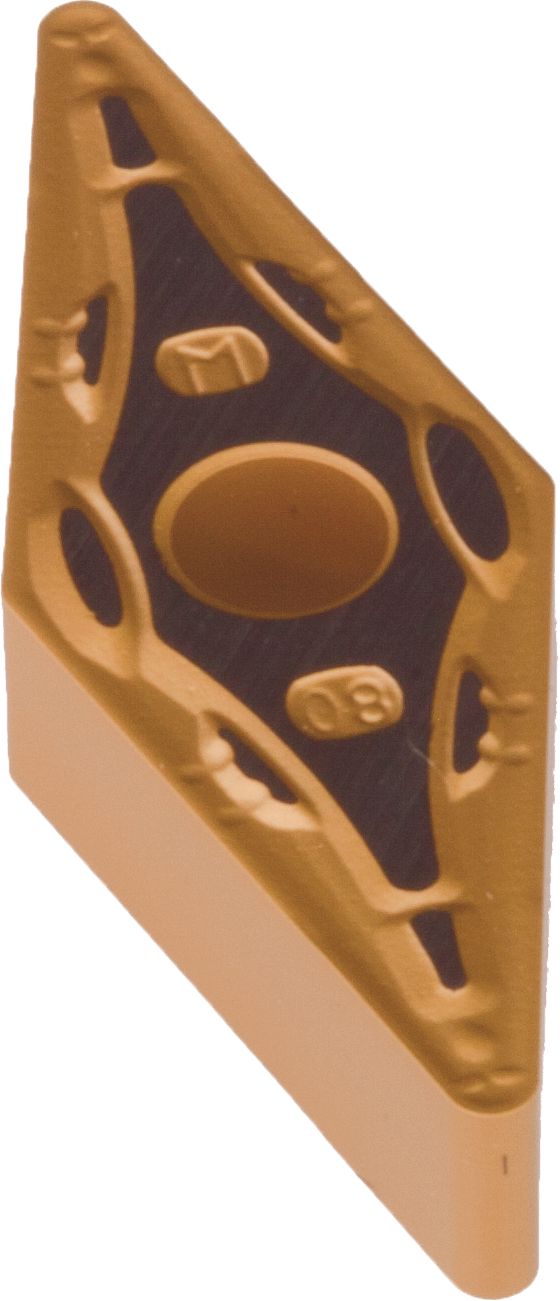

35° Diamond Negative Insert
(Pack of
10)
SKU:1353723 Item#: 1353723
Best for Alloy Steel - Universal
Frequently Bought Together
MityLite™ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
MityLite™ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
MityLite™ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Item#: 1368141
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Item#: 1368140
Couldn't load pickup availability
High Solids Paints Gloss Black
Item#: 1509224
Couldn't load pickup availability
Product Description
Best for Alloy Steel - UniversalTechnical Specifications
| Item#: | 1353723 |
|---|---|
| Type | Insert |
| Insert | VNMG |
| Chip Breaker Code | PEM |
| Compatible Materials | Stainless Steel,Carbon & Alloy Steel |
| Shape | 35° Diamond |
| Direction | Neutral |
| Clearance Angle | 0° Negative |
| Grade | DPC25UT |
| Material | Carbide |
| Coating | CVD |
| Effective Cutting Edge Length | 0.078 " |
| Length | 0.629 " |
| Depth of Cut | 0.118 " |
| Feed Rate | 0.2 |
| Surface Feet Per Minute | 950 |
| Thickness | 0.1875 " |
| I.C. (Inscribed Circle) | 0.375 " |
| Insert Tip Radius | 0.0312 " |
| UNSPSC #: | 27111701 |
| TAA Compliant: | Yes |
