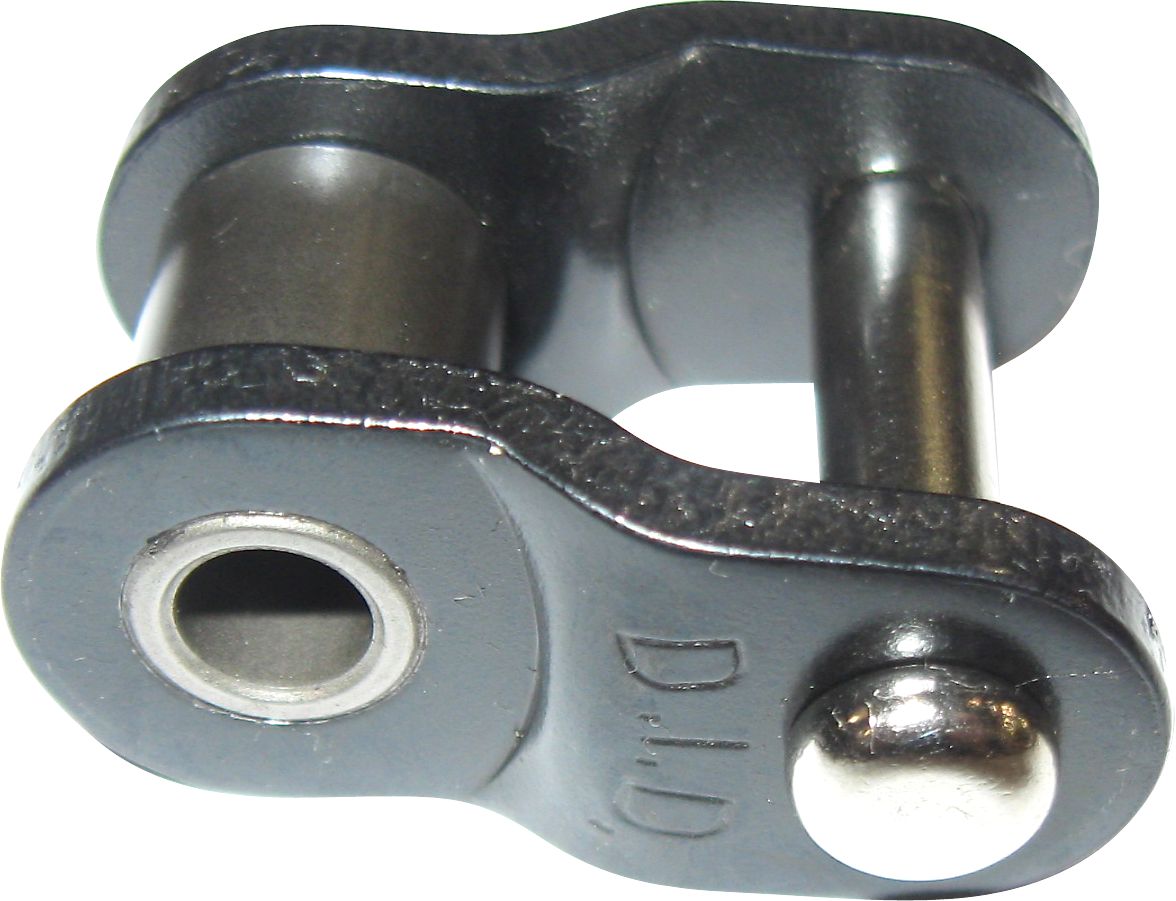

Offset Link (Half Link), Single Strand, Sintered Bushing, Steel, Indus
(Pack of
5.0)
Sintered Bushing roller chain has bushings made of a sintered alloy which is impregnated with lubricating oil during manufacture. The sintered bushing roller chain is a maintenance-free chain suitable for applications where lubrication is not permitted.
In a sintered bushing roller chain, to compensate for the strength lowered by the use of sintered bushing, the inner plates are thicker than those of a standard roller chain, and the pins are longer.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 15-60
Frequently Bought Together
Connecting Link, Single Strand, Steel, Industry No. 25
Couldn't load pickup availability
Connecting Link, Double Strand, Steel, Industry No. 50-2
Couldn't load pickup availability
Offset Link (Half Link), Single Strand, Steel, Industry No. 50
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x7, 3/32", 920 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x19, 1/4", 7,000 lbs Breaking Strengt
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x19, 3/16", 4,200 lbs Breaking Streng
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 12B
Couldn't load pickup availability
Roller Chain, Single Strand, Steel, Industry No. 40
Couldn't load pickup availability
Connecting Link, Double Strand, Steel, Industry No. 25-2
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Non-Chlorinated Brake Parts Cleaner 14oz
Couldn't load pickup availability
Product Description
Sintered Bushing roller chain has bushings made of a sintered alloy which is impregnated with lubricating oil during manufacture. The sintered bushing roller chain is a maintenance-free chain suitable for applications where lubrication is not permitted.In a sintered bushing roller chain, to compensate for the strength lowered by the use of sintered bushing, the inner plates are thicker than those of a standard roller chain, and the pins are longer.
Technical Specifications
| Item#: | 1443478 |
|---|---|
| Configuration | Offset Link (Half Link) |
| Type | Single Strand |
| Style | Standard; Sintered Bushing |
| Material | Steel |
| Finish | Plain |
| Industry Number | 40 |
| Pitch | 1/2 " |
| Roller Width | 0.313 " |
| Roller Diameter | 0.312 " |
| Plate Thickness | 0.079 " |
| Plate Height | 0.472 " |
| Average Tensile Strength | 4,004 lb |
| Maximum Load | 836 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
