Home Fasteners Open End Rivet Large Flange Head SS 1/8"
Fasteners

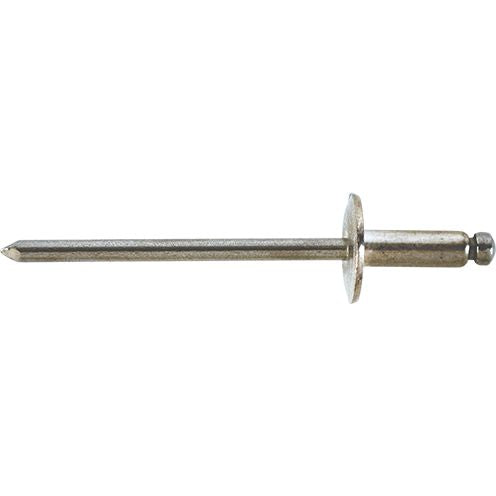

Open End Rivet, Large Flange Head, Stainless Steel, 1/8" Diameter, 0.063 to 0.125" Grip Range, 0.275" Body Length
(Pack of 100)

Lawson Products

Large Flange
• 18-8 stainless steel
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 7-10

Frequently Bought Together


Hex Nut Grade 5 Steel 5/16-18

Item#: FA95678

USS Flat Washer Thru-Hardened Steel 1/2"

Item#: 88449

Hex Nut Grade 8 Alloy Steel 5/8-11

Item#: A106

Open End Rivet Large Flange Head Steel 3/16"

Item#: 82348

Open End Rivet Large Flange Head Aluminum 3/16"

Item#: 82354

Open End Rivet Dome Head Steel 3/16"

Item#: 486

Structural Rivet Internal Lock Dome Head SS 1/4"

Item#: 1543644

Open End Rivet Large Flange Head Aluminum 3/16"

Item#: 1962

Structural Rivet Internal Lock Steel 3/16"

Item#: 90478

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728

Product Description

Large Flange
• 18-8 stainless steel
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application

Technical Specifications

Item#: 97075
Type Open End
Head Style Large Flange
Material Body/Mandrel Stainless Steel/Stainless Steel
Diameter 1/8 "
Grip Range 0.063 – 0.125 "
Industry Number 42
Hole Size 0.129 – 0.133 "
Drill Size #30
Head Diameter 0.375 "
Head Height 0.065 "
Body Length 0.275 "
Shear Strength 420 lb
Tensile Strength 530 lb
UNSPSC #: 31162201
TAA Compliant: Yes
Weight: 0.36 lb
