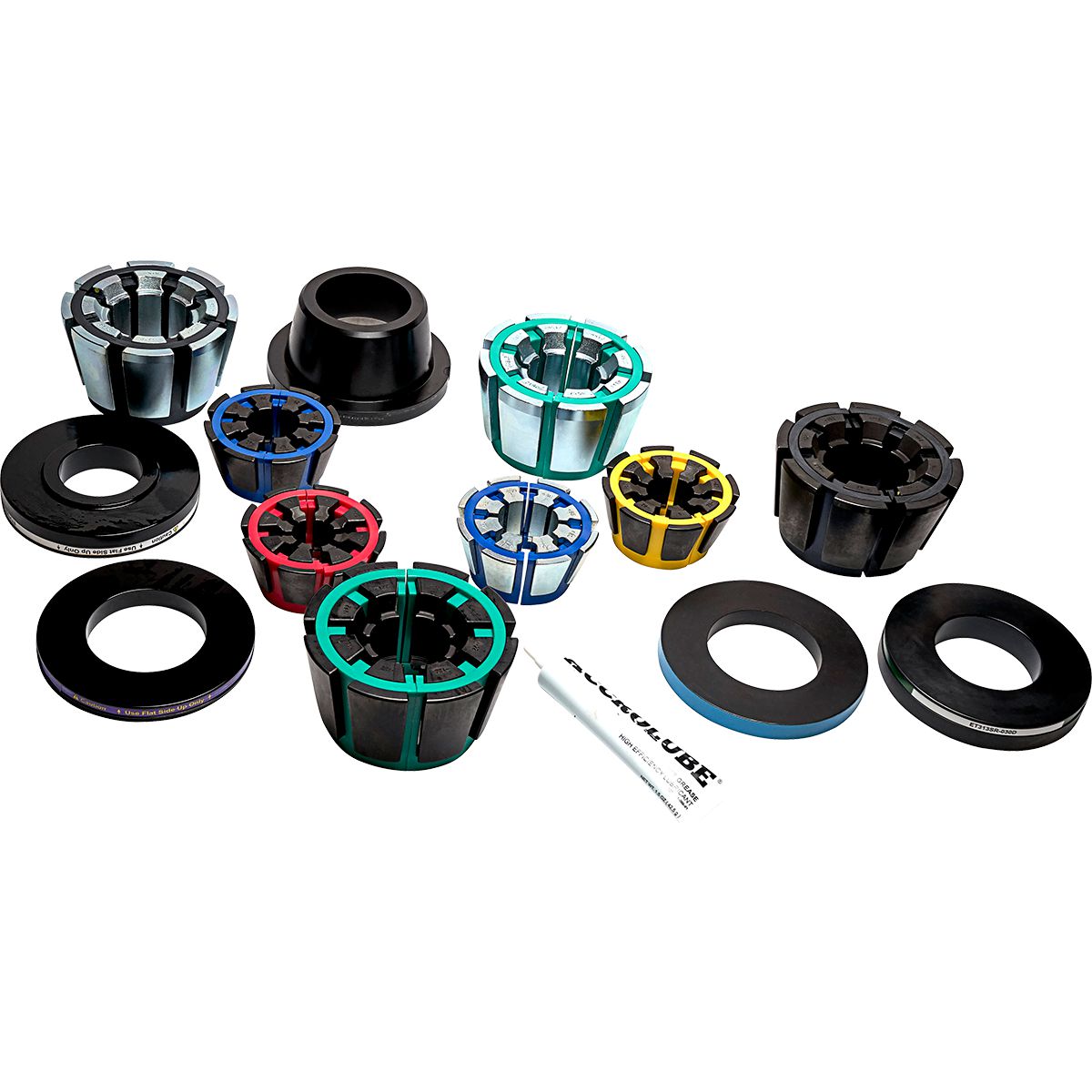

Optimized Tooling Kit
(Pack of
1.0)
Eaton has focused on reducing the complexity of their hose and fitting product lines. This smarter range of key core products makes it easier to master the product portfolio and reduce overhead. Additionally, Eaton is introducing newly-designed tooling sets by machine group that cover over 80% of its core product crimping needs. This means fewer issues on your end due to nesting diameters, sticking collets, and other interface problems that have been engineered away. It’s as easy as 1-2-3.
• Fitting locators are built into the collets
• Dies are designed for a specific fitting series
• Collet cages are color-coded by size
• Metal collets are color-coded by fitting series
• Part numbers and fitting series are clearly labeled on the collet and spacer rings
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 8-37
Frequently Bought Together
Spacer Ring T-470-16C
Couldn't load pickup availability
Spacer Ring T-440-79R
Couldn't load pickup availability
Spacer Ring T-400-41C
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 11/16-16
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 1/2-14
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability
Pipe Adapter Brass 1/4-18 x 3/8-18
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Product Description
Eaton has focused on reducing the complexity of their hose and fitting product lines. This smarter range of key core products makes it easier to master the product portfolio and reduce overhead. Additionally, Eaton is introducing newly-designed tooling sets by machine group that cover over 80% of its core product crimping needs. This means fewer issues on your end due to nesting diameters, sticking collets, and other interface problems that have been engineered away. It’s as easy as 1-2-3.• Fitting locators are built into the collets
• Dies are designed for a specific fitting series
• Collet cages are color-coded by size
• Metal collets are color-coded by fitting series
• Part numbers and fitting series are clearly labeled on the collet and spacer rings
Technical Specifications
| Item#: | 1556056 |
|---|---|
| Category | Tooling Conversion Kit |
| Description | Z-Series and 4S/6S Series Tooling Kit for ET1000 Crimper |
| Size | ET1000 |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 33.6425 lb |
