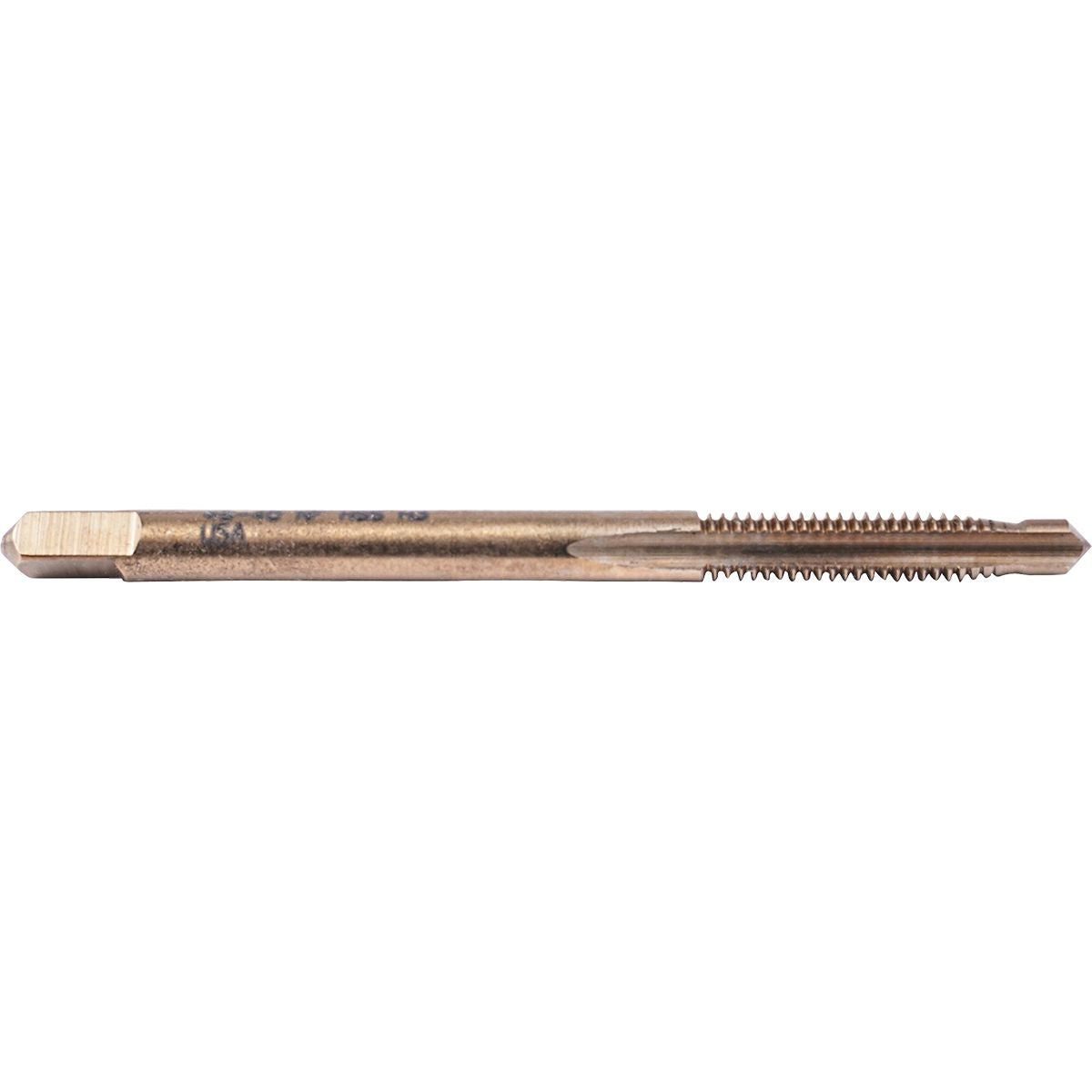

Pilotdrive Cryotap #10-24 Starter Hand Tap
(Pack of
1)
SKU:DY80635005 Item#: DY80635005
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed
• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Cryophase™: Thermal cycle cryogenic treatment
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Catalog page#: LE-74
Frequently Bought Together
Jobber Length Drill Bit HSS 3/16"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 9/32"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 3" Maroon
Couldn't load pickup availability
CryoBoost 1/4" Dia. 1/4" Hex Shank Drill Bit
Couldn't load pickup availability
Flex-Guard Braided Sleeving 3/8"
Couldn't load pickup availability
Telcom IDC Discrete Connector 26 to 19 AWG
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
HSS Spiral Point Hand Tap M3 x 0.5
Couldn't load pickup availability
HSS Spiral Point Hand Tap 8-36
Couldn't load pickup availability
HSS Spiral Point Hand Tap 7/16-20
Couldn't load pickup availability
HSS Spiral Point Hand Tap 6-32
Couldn't load pickup availability
HSS Combination Drill-Tap 6-32
Couldn't load pickup availability
3-Flute HSS Bottoming Hand Tap 6-32
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Brown
Couldn't load pickup availability
Mini-Hole Saw Kit
Couldn't load pickup availability
1/8" - 1/2 " Cryonitride Spiral Fluted Step Drill - 1/4" Shank
Couldn't load pickup availability
Product Description
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Cryophase™: Thermal cycle cryogenic treatment
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80635005 |
|---|---|
| Type | Machine Screw |
| Diameter | #10 |
| Pitch | 24 |
| Flutes | 4 |
| Thread Length | 1/2 " |
| H Limits | H3 |
| Overall Length | 2-3/8 " |
| Recommended Drill Size | No. 25 |
| UNSPSC #: | 23241615 |
| TAA Compliant: | No |
| Weight: | 0.02 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
