Home Electrical Pin Terminal 22 to 18 AWG
Electrical

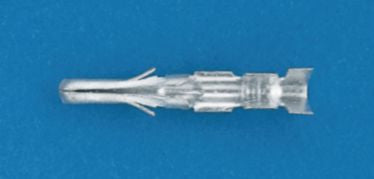

Pin Terminal for Power Connector, 22 to 18 AWG, 12 Amps, 250 Volts, Brass, Tin Plated
(Pack of 10)

Item#: 98792

Lawson Products

• Tin-plated brass terminals
• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.

Read More
Check Availability

Catalog page#: 17-60, 22-23

Frequently Bought Together


DT Series Receptacle 13A 2 Contacts

Item#: 29489

Super 33+ Series Vinyl Electrical Tape Black 3/4"

Item#: 54518

Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black

Item#: 86502

Socket Terminal 22 to 18 AWG

Item#: 1145864

Power Connector Housing 12-Wire Plug

Item#: 98805

Stepdown Butt Connector 16 to 14/12 to 10 AWG

Item#: 1495189

Master Series Penlight Flashlight

Item#: 1635602

SAE J995C Locknut with Nylon Insert Grade 8 5/8-11

Item#: 53985

Butt Connector 22 to 18 AWG

Item#: 95352

Step-Down Butt Connector 12 to 10/16 to 14 AWG

Item#: 54531

Butt Connector 16 to 14 AWG Blue

Item#: 64395

Product Description

• Tin-plated brass terminals
• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.

Technical Specifications

Item#: 98792
Type Pin
Wire Gauge 22-18 AWG
Maximum Voltage 250 V
Approvals UL recognized File No. E-29179 and CSA certified, File No. LR-19980
Description 22 to 18 Gauge
Style Pin and Socket Power Connector Terminals
UNSPSC #: 39121432
TAA Compliant: Yes
Weight: 0.02 lb
