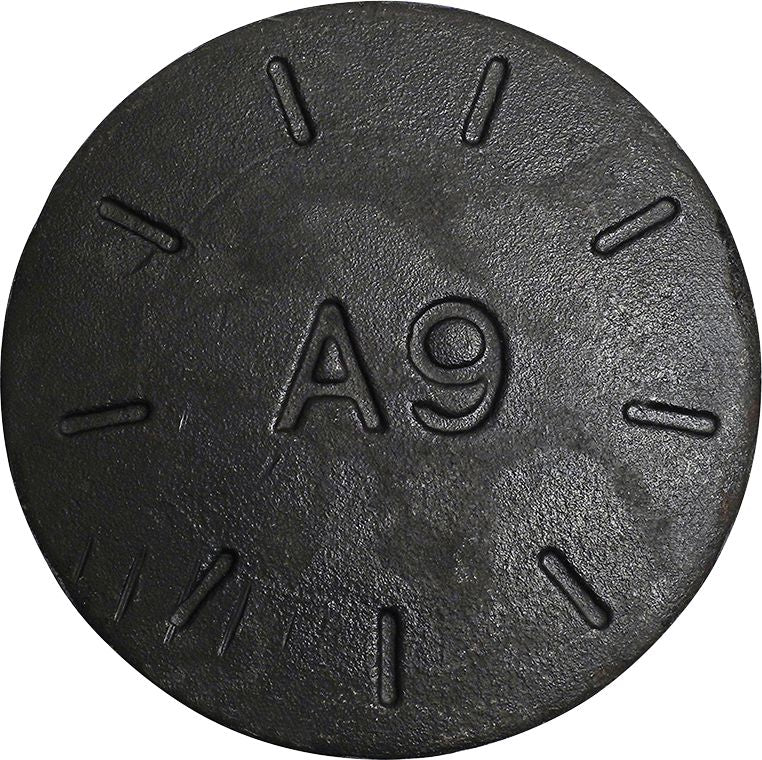

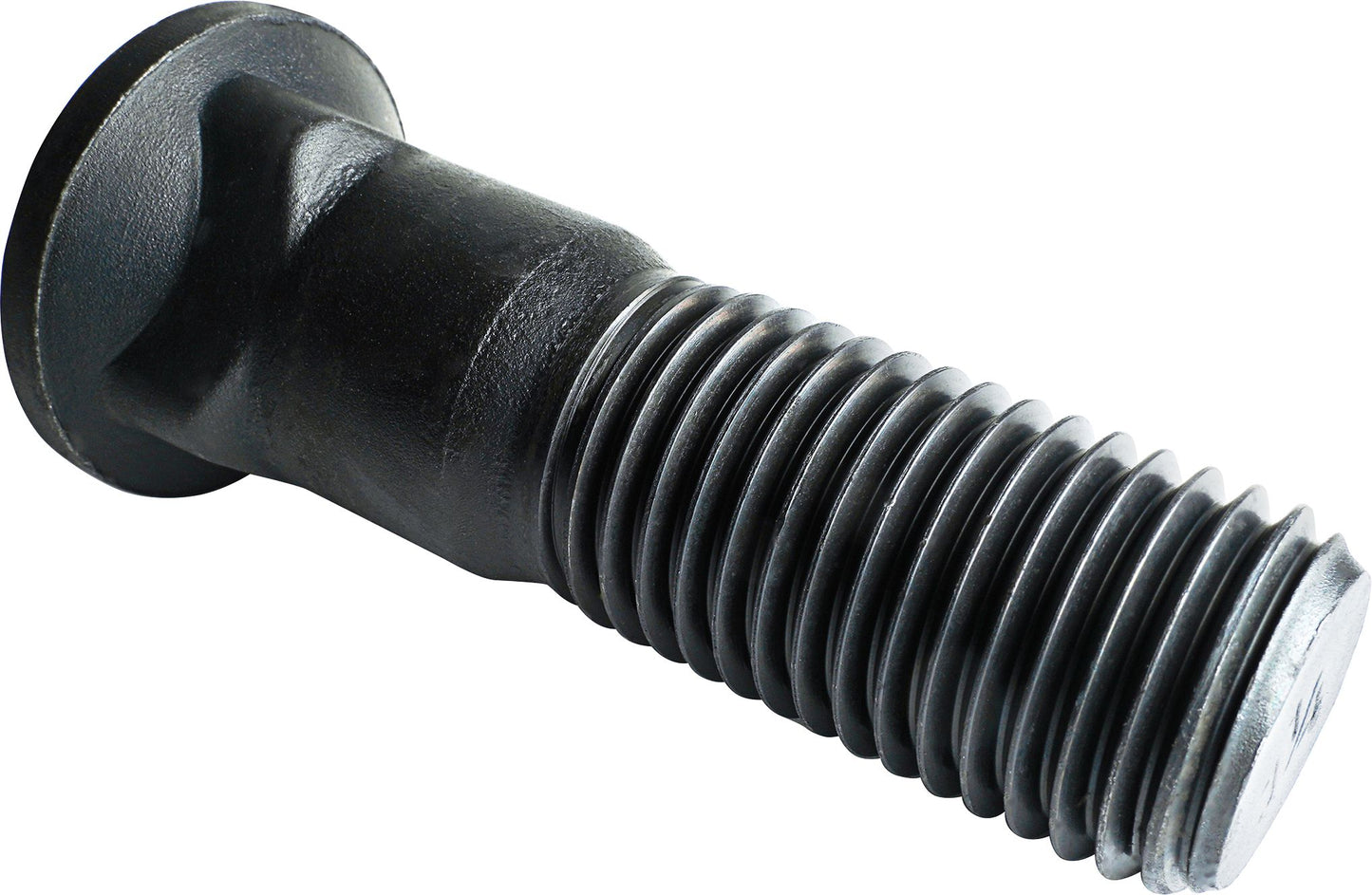

Plow Bolt, Dome Head, A9 (Grade 9), Alloy Steel, Plain Finish, Coarse Thread, 1-1/4-7 x 4-1/2"
(Pack of
1)
• 170,000 PSI minimum tensile strength
• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 3-60
Frequently Bought Together
Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 1"
Couldn't load pickup availability
Hex Cap Screw Grade 8 1/4-20 x 1"
Couldn't load pickup availability
Hex Cap Screw Grade 8 3/8-16 x 1-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Plow Bolt High Strength A9 3/4-10 x 2-1/2"
Couldn't load pickup availability
Plow Bolt High Strength A9 3/4-10 x 3"
Couldn't load pickup availability
Plow Bolt Grade 5 Steel 7/16-14 x 1-1/2"
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Product Description
• 170,000 PSI minimum tensile strength• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Technical Specifications
| Item#: | 10739 |
|---|---|
| Type | Plow Bolt |
| Diameter | 1-1/4 " |
| Thread Pitch | 7 |
| Thread | Coarse |
| Length | 4-1/2 " |
| Head Style | Dome |
| Finish | Plain |
| Material | Alloy Steel |
| Grade | 9 |
| Tensile Strength | 170,000 PSI |
| Size | 4-1/2 |
| UNSPSC #: | 31161600 |
| TAA Compliant: | Yes |
| Weight: | 1.77 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
