Power Crimp 707 Crimper PC707ND NO DIES (Crimper Only)
(Pack of
1.0)

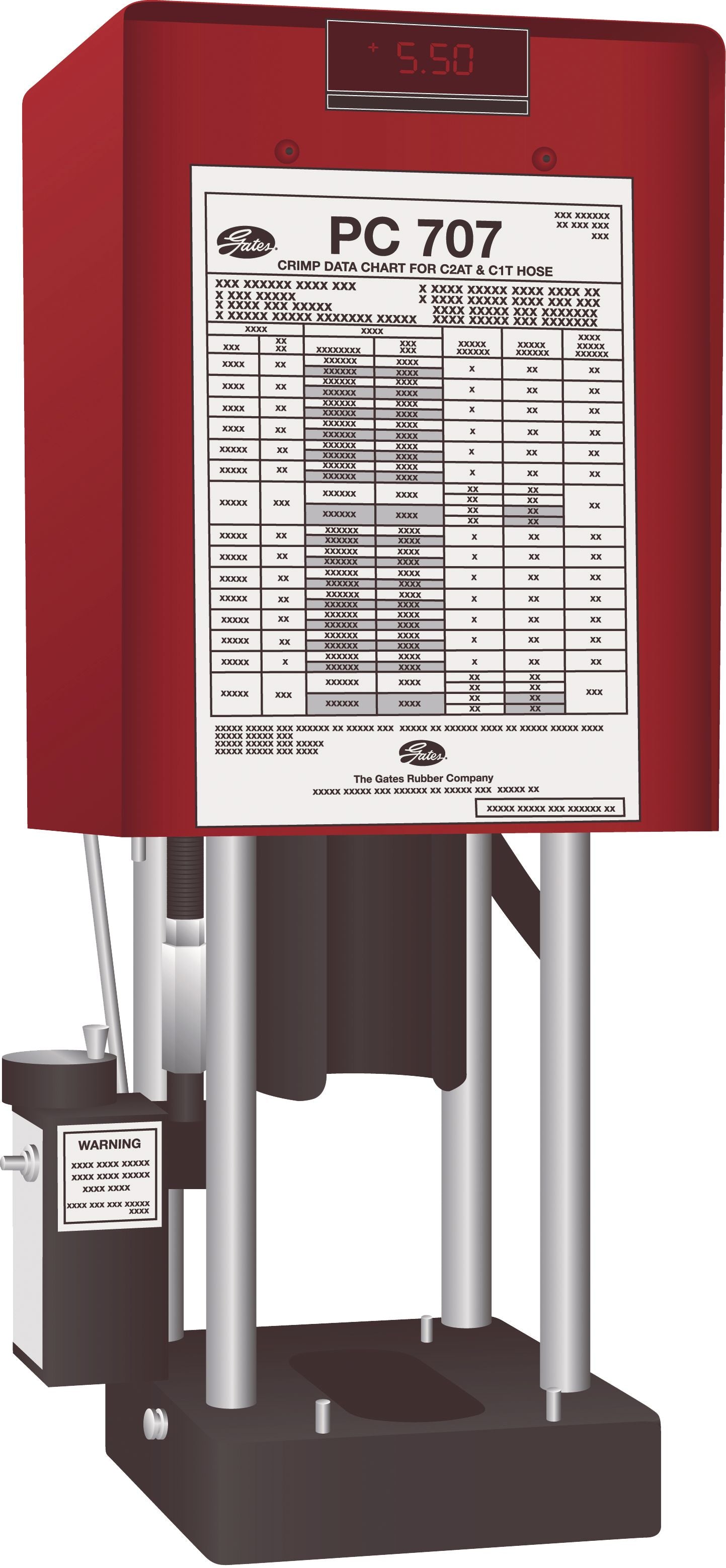

Gates® Power Crimp® 707 is the most precise, simplest crimper made. It was the first crimper with an electronic digital readout to indicate gauge setting.
The toughest part about using the 707 is pushing a button. It takes just a few seconds to make factory-quality hose assemblies.
Crimps most hydraulic hoses from low-pressure return lines to extremely high-pressure spirals, ranging from 3/16" to 1-1/4" I.D. Crimps straight and bent tube couplings amd 45° and 90° block types. Can also be adapted for use as a power swager.
• Standard PC707 comes without die sets or pump, but is wired for 115V and includes a die back-up ring and a notched cone
• Production rate: 100 assemblies per hour (using 1/2" I.D. two-wire straight thread assemblies)
• Dimensions: 13"W x 12"D x 26-1/2"H
• Weight: 188 lbs.
• PC707 230V Converter Kit (Item No. 1206930)
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
Couldn't load pickup availability
Catalog Page#: 8-53
Frequently Bought Together
Spacer Ring T-421-10C
Couldn't load pickup availability
Spacer Ring T-420-30C
Couldn't load pickup availability
Spacer Ring T-410-26
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.644 x 0.087"
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 13/16-16
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
Super 77 Hose Clamp SS 5/8 to 1-1/4"
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
Gates® Power Crimp® 707 is the most precise, simplest crimper made. It was the first crimper with an electronic digital readout to indicate gauge setting.The toughest part about using the 707 is pushing a button. It takes just a few seconds to make factory-quality hose assemblies.
Crimps most hydraulic hoses from low-pressure return lines to extremely high-pressure spirals, ranging from 3/16" to 1-1/4" I.D. Crimps straight and bent tube couplings amd 45° and 90° block types. Can also be adapted for use as a power swager.
• Standard PC707 comes without die sets or pump, but is wired for 115V and includes a die back-up ring and a notched cone
• Production rate: 100 assemblies per hour (using 1/2" I.D. two-wire straight thread assemblies)
• Dimensions: 13"W x 12"D x 26-1/2"H
• Weight: 188 lbs.
• PC707 230V Converter Kit (Item No. 1206930)
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
Technical Specifications
| Item#: | 1593585 |
|---|---|
| Category | Crimper |
| Description | PC707 Crimper |
| UNSPSC #: | 27121500 |
| TAA Compliant: | No |
| Weight: | 214.0 lb |
