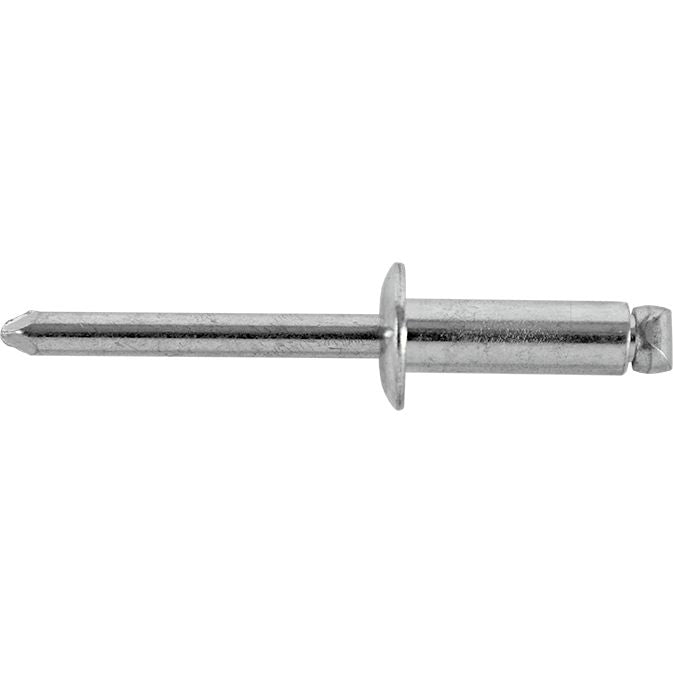

Pull Rivet Dome Head Steel 3/16"
(Pack of
100.0)
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Steel 1/4"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Couldn't load pickup availability
Multi-Grip Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/16"
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Seat Back and Trim Panel Retainer Nylon 13mm Top
Couldn't load pickup availability
Nitrogen ID Ring Green
Couldn't load pickup availability
Sheet Metal Screw Phillips/Square Hex 1/4 x 5/8"
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | P48352M01 |
|---|---|
| Type | Open End |
| Head Style | Dome Head |
| Material Body/Mandrel | Steel/Steel |
| Diameter | 3/16 " |
| Grip Range | 0.501 – 0.625 " |
| Industry Number | 610 |
| Hole Size | 0.192 – 0.196 " |
| Drill Size | #11 |
| Head Diameter | 0.375 " |
| Head Height | 0.060 " |
| Body Length | 0.825 " |
| Shear Strength | 610 lb |
| Tensile Strength | 870 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 1.19 lb |
