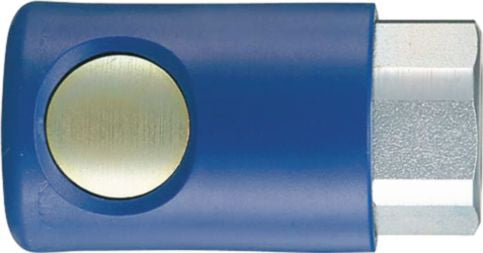

Push-Button Coupler, Steel with Plastic Cover, ARO 210, Female NPTF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of
1)
SKU:KT14095 Item#: KT14095
Push-Button Air Couplers are made for simplicity…just push the button to release. The release button is recessed to prevent accidental disconnect. Convenient color coding indicates which plug type it will accept: Industrial Interchange, ARO 210 or Tru-Flate. Extremely durable – constructed of steel components encased in a high-impact, non-marring body.
• Body color: Blue with yellow dichromate button
• Note: Does not qualify as a safety coupler. Outside plastic covering indicates if the coupler is a regular coupler (blue) or a safety coupler (black)
• Manufactured to demanding ANSI and ISO standards – use of compatible plugs of the same high standard is recommended
• Unique non-scratching boots
• Maximum working pressure: 175 PSI
• Temperature range: 5°F to 160°F (–15°C to +71°C)
ARO 210 Series Design
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
DOT Union Nylon 1/4 x 1/4"
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Product Description
Push-Button Air Couplers are made for simplicity…just push the button to release. The release button is recessed to prevent accidental disconnect. Convenient color coding indicates which plug type it will accept: Industrial Interchange, ARO 210 or Tru-Flate. Extremely durable – constructed of steel components encased in a high-impact, non-marring body.• Body color: Blue with yellow dichromate button
• Note: Does not qualify as a safety coupler. Outside plastic covering indicates if the coupler is a regular coupler (blue) or a safety coupler (black)
• Manufactured to demanding ANSI and ISO standards – use of compatible plugs of the same high standard is recommended
• Unique non-scratching boots
• Maximum working pressure: 175 PSI
• Temperature range: 5°F to 160°F (–15°C to +71°C)
ARO 210 Series Design
Technical Specifications
| Item#: | KT14095 |
|---|---|
| Description | Push-Button Coupler |
| Type | Coupler |
| Style | ARO 210 |
| Body Size | 1/4 " |
| Thread Style | Female NPTF |
| Thread Size | 1/4-18 |
| Working Pressure | 175 PSI |
| Material | Steel with Plastic Cover |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.18 lb |
