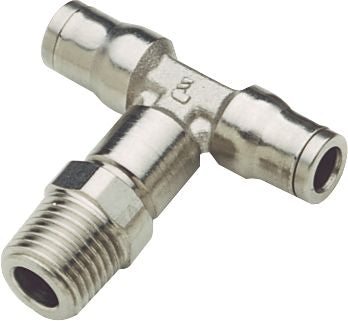

LF3600 Push-to-Connect Branch Tee, Brass, Nickel Plated, 8 x 8mm x 1/8", Tube x Tube x Male BSPT, 7 to 290PSI
(Pack of
10)
SKU:1198154 Item#: 1198154
All materials, seals, and plating conform to FDA standards and can come in contact with food.Made of nickel-plated brass and fitted with a FKM ”O“ ring protected by a washer, LF3600 forged fittings may be used with all liquid and gaseous fluids compatible with these components, materials and temperatures up to 250° F (depending on the tube material). For applications where the fitting is exposed to aggressive environments. Legris uses high phosphorous electroless nickel-plating for the LF3600 fitting range. The electroless nickel-plating has a dull, flat finish. It adheres to more of the surface, such as in the root of the threads and grooves of the collet. It is resistant to water, harsh detergents and other aggressive fluids and environments. As a result, the LF3600 series offers superior chemical, corrosion and abrasive resistance.
• All items in the LF3600 range are Silicone free• Working temperature: -4°F to +250°F • Working pressure: 7 to 290 PSI • Sutable fluids: all liquids and gasses compatible with the materials of the fitting • Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied.
• Construction: – Body: high phosphorus FDA chemical nickel-plated brass– Backup washer: high phosphorus FDA chemical nickel-plated brass– Collet Technology: high phosphorus FDA chemical nickel-plated brass– “O” ring: FKM (FPM) fluoroelastomer conforming to FDA standard– Base: high phosphorus FDA chemical nickel-plated brass
The body is orientable for positioning purposes.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Hex Bushing Steel 3/4-14 x 1/2-14
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/4-18 x 1/4-18
Couldn't load pickup availability
Hex Bushing Steel 1/2-14 x 3/8-18
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
Hose Clamp 304 SS 1-5/16 to 2-1/4"
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/4"
Couldn't load pickup availability
Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x 1/8"
Couldn't load pickup availability
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
All materials, seals, and plating conform to FDA standards and can come in contact with food.Made of nickel-plated brass and fitted with a FKM ”O“ ring protected by a washer, LF3600 forged fittings may be used with all liquid and gaseous fluids compatible with these components, materials and temperatures up to 250° F (depending on the tube material). For applications where the fitting is exposed to aggressive environments. Legris uses high phosphorous electroless nickel-plating for the LF3600 fitting range. The electroless nickel-plating has a dull, flat finish. It adheres to more of the surface, such as in the root of the threads and grooves of the collet. It is resistant to water, harsh detergents and other aggressive fluids and environments. As a result, the LF3600 series offers superior chemical, corrosion and abrasive resistance.• All items in the LF3600 range are Silicone free• Working temperature: -4°F to +250°F • Working pressure: 7 to 290 PSI • Sutable fluids: all liquids and gasses compatible with the materials of the fitting • Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied.
• Construction: – Body: high phosphorus FDA chemical nickel-plated brass– Backup washer: high phosphorus FDA chemical nickel-plated brass– Collet Technology: high phosphorus FDA chemical nickel-plated brass– “O” ring: FKM (FPM) fluoroelastomer conforming to FDA standard– Base: high phosphorus FDA chemical nickel-plated brass
The body is orientable for positioning purposes.
Technical Specifications
| Item#: | 1198154 |
|---|---|
| Manufacturer Model #: | 3608 08 10 |
| Style | LF3600 |
| Configuration | Male Branch Tee |
| Tube Size | 8 mm |
| Thread Size | R1/8 " |
| Thread Style | BSPT |
| Material | Nickel-Plated Brass |
| Wrench Size | 14 mm |
| Working Pressure | 7 to 290 PSI |
| Temperature Range | -4 to 250 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
