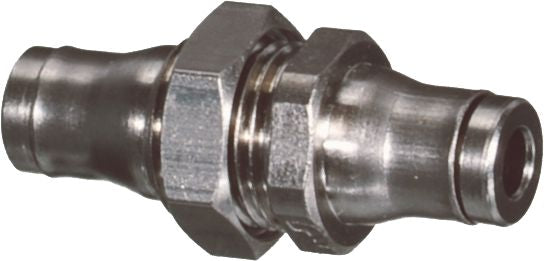

Push-to-Connect Bulkhead Connector, Nickel-Plated Brass, 1/4 x 1/4", Tube x Tube, 280 PSI Working Pressure
(Pack of
3)
SKU:28338 Item#: 28338
Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-36
Frequently Bought Together
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x 1/8"
Couldn't load pickup availability
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2"
Couldn't load pickup availability
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8"
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/2-14 x 1/2-14
Couldn't load pickup availability
Hex Bushing Steel 3/4-14 x 1/2-14
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/4-18 x 1/4-18
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
Hose Clamp 304 SS 1-5/16 to 2-1/4"
Couldn't load pickup availability
Nylon Hose Guard 1.06" ID x 25' Length
Couldn't load pickup availability
Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x 1/8"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 28338 |
|---|---|
| Style | Nickel-Plated Brass Push-To-Connect |
| Configuration | Bulkhead Connector |
| Tube Size | 1/4 " |
| Material | Nickel-Plated Brass |
| Wrench Size | 16 mm |
| Bulkhead Nut Size | 17 mm |
| Panel Hole Diameter | 0.59 " |
| Panel Thickness | 0.24 " |
| Working Pressure | 280 PSI |
| Temperature Range | -4 to +176 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
| Weight: | 0.21 lb |
