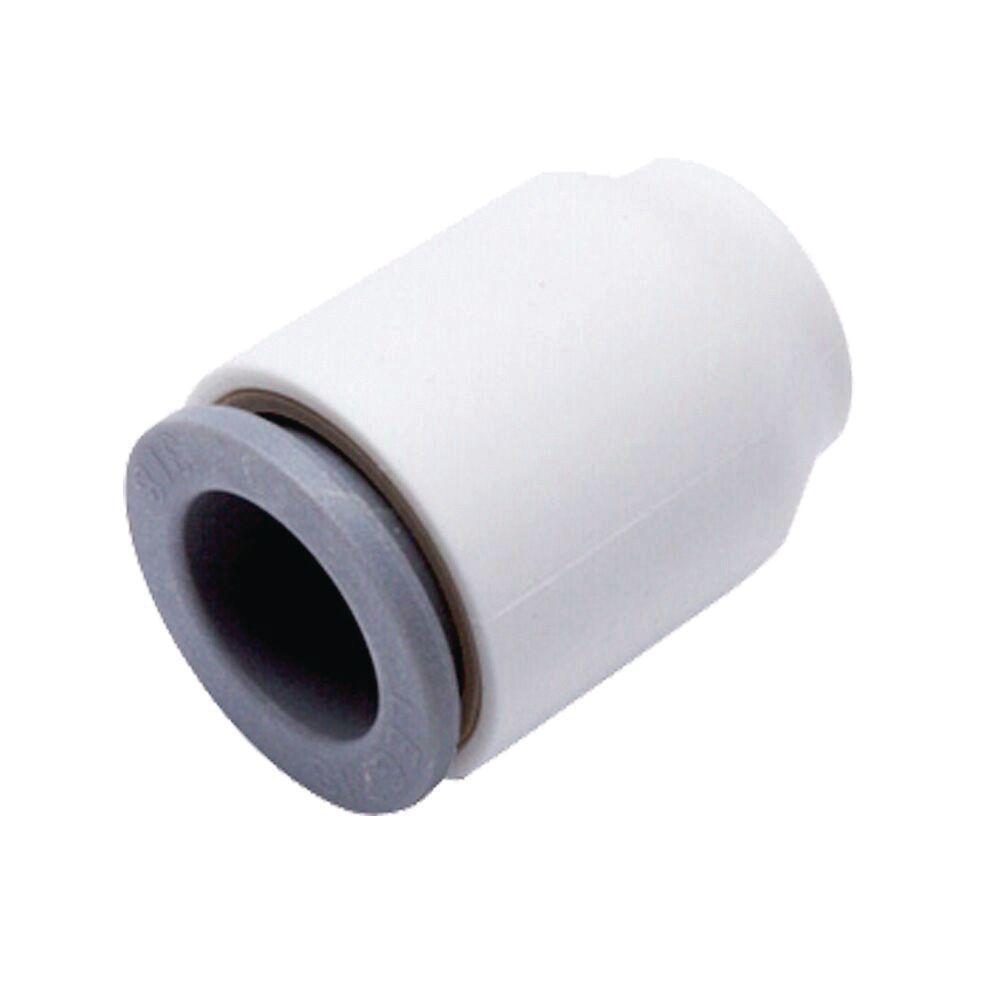

LIQUIfit Push-to-Connect End Stop, Polymer, 1/4", Tube, 230PSI
(Pack of
10)
SKU:1260655 Item#: 1260655
LIQUIfit is a revolutionary push-to-connect fitting for water treatment applications. The stainless steel gripping ring coupled with the EPDM seal offer optimum performance suitable for contact with water, beverages and food. Its full flow profile delivers maximum capability while its compact push-to-connect design facilitates the tightest tube bends in the industry with no pumping effect.
• High chemical resistance (chlorine, cleaning agents, UV)
• All items in the LIQUIfit range are silicone free
• Approved for contact with food: FDA, NSF 51, NSF 61, WRAS inch
• Working temperature: 35°F to 200°F
• Working pressure: Up to 230 PSI
• Suitable for water, beverages, food and CO2
• Construction:
– Body: Engineered polymer
– Gripping ring: Stainless steel
– “D” seal: EPDM
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
– Inert gas supply
– High purity water
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-41
Frequently Bought Together
Hex Bushing Steel 3/8-18 x 1/4-18
Couldn't load pickup availability
Pipe Tee Brass 1/4-18 x 1/4-18 x 1/4-18
Couldn't load pickup availability
Hex Head Plug Brass 1/8-27 Male NPT
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Couldn't load pickup availability
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8"
Couldn't load pickup availability
Heavy-Duty Tube and Hose Cutter 1 to 1/8"
Couldn't load pickup availability
Push-to-Connect Extension Elbow, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Product Description
LIQUIfit is a revolutionary push-to-connect fitting for water treatment applications. The stainless steel gripping ring coupled with the EPDM seal offer optimum performance suitable for contact with water, beverages and food. Its full flow profile delivers maximum capability while its compact push-to-connect design facilitates the tightest tube bends in the industry with no pumping effect.• High chemical resistance (chlorine, cleaning agents, UV)
• All items in the LIQUIfit range are silicone free
• Approved for contact with food: FDA, NSF 51, NSF 61, WRAS inch
• Working temperature: 35°F to 200°F
• Working pressure: Up to 230 PSI
• Suitable for water, beverages, food and CO2
• Construction:
– Body: Engineered polymer
– Gripping ring: Stainless steel
– “D” seal: EPDM
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
– Inert gas supply
– High purity water
Technical Specifications
| Item#: | 1260655 |
|---|---|
| Manufacturer Model #: | 6351 56 00WP2 |
| Style | LIQUIfit |
| Configuration | End Stop |
| Tube Size | 1/4 " |
| Material | Engineered Polymer |
| Working Pressure | 230 PSI |
| Temperature Range | +35 to +200 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
