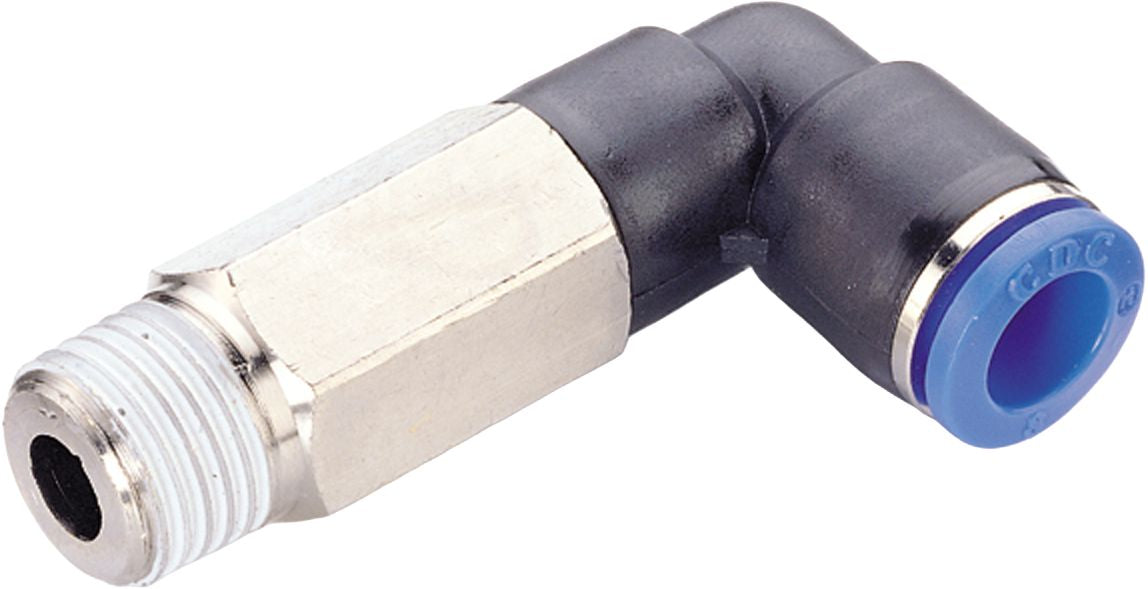

Push-to-Connect Extended Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/8", Tube x Male NPT, 150 PSI Working Pressure
(Pack of
2)
SKU:56115 Item#: 56115
Designed for pneumatic installations and conveyance of inert gases. Resin Series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-30
Frequently Bought Together
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2"
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 6mm x 1/8"
Couldn't load pickup availability
Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
Pipe Coupling Brass 1/8-27 x 1/8-27
Couldn't load pickup availability
Pipe Close Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Pipe Adapter Brass 1/4-18 x 3/8-18
Couldn't load pickup availability
DOT Union Nylon 3/8 x 3/8"
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2"
Couldn't load pickup availability
Nylon Hose Guard 1.42" ID x 25' Length
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 6mm x 1/8"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin Series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 56115 |
|---|---|
| Configuration | Extended Male Elbow |
| Tube Size | 1/4 " |
| Thread Size | 1/8 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 11 mm |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
