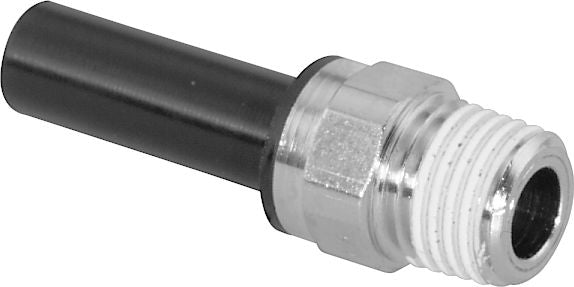

LF3000 Push-to-Connect Standpipe, Nylon Body, Nickel Plated Brass Base, 5/32 (4mm) x 1/4", Tube x Male BSPT, 290PSI
(Pack of
2)
SKU:56092 Item#: 56092
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: glass-reinforced nylon 6.6
– Collar: nylon– Gripping ring: stainless steel (all sizes except 3/16" tube)
– Collet: brass (3/16" tube size only)
– D seal: nitrile
– O-ring: nitrile
– Base: nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: glass-reinforced nylon 6.6
– Collar: nylon– Gripping ring: stainless steel (all sizes except 3/16" tube)
– Collet: brass (3/16" tube size only)
– D seal: nitrile
– O-ring: nitrile
– Base: nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 56092 |
|---|---|
| Manufacturer Model #: | 3121 04 13 |
| Style | LF3000 |
| Configuration | Male Standpipe |
| Tube Size | 4mm (5/32") |
| Thread Size | R1/4 " |
| Thread Style | BSPT |
| Material | Nylon Body, Nickel-Plated Brass Base |
| Wrench Size | 14 mm |
| Working Pressure | 290 PSI |
| Temperature Range | -4 to +175 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
