Home Hydraulics Fittings Industrial Tubing Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 6 x 6 x 6mm
Advanced Technology Products (ATP)

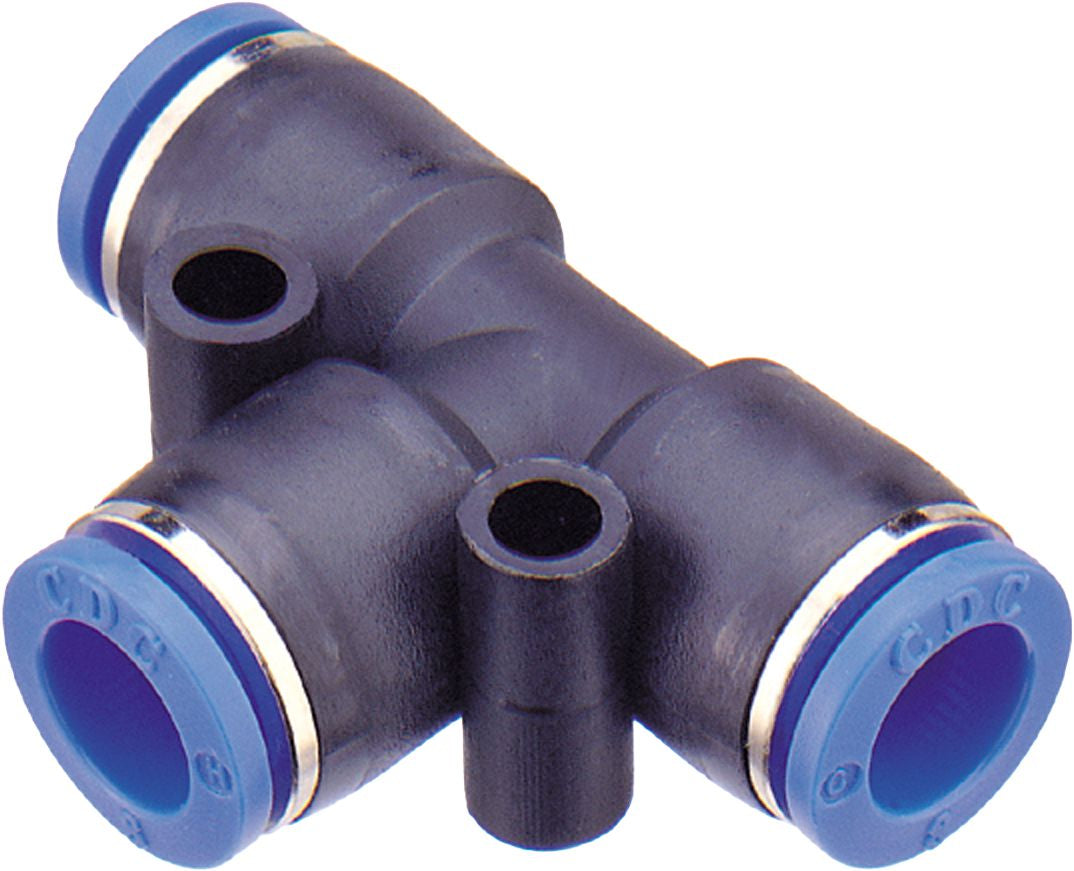

Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 6 x 6 x 6mm, Tube x Tube x Tube, 150 PSI Working Pressure
Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 6 x 6 x 6mm, Tube x Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 6 x 6 x 6mm, Tube x Tube x Tube, 150 PSI Working Pressure
(Pack of 5)

Item#: 98215

Lawson Products

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 9-33

Frequently Bought Together

Push-to-Connect Extension Elbow, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4

Push-to-Connect Extension Elbow, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"

Item#: 62208
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 3/8"

Item#: 54413
Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 6mm, Tube, 150 PSI Working Pressure

Push-to-Connect Plug, Nickel-Plated Brass/PBT Resin, 6mm

Item#: 54399
Hex Bushing Steel 3/8-18 x 3/8-18, Hex Bushing, Steel, Black, Schedule 40/80, 3/8-18 x 3/8-18, Male NPT x Female NPT, 150 PSI

Hex Bushing Steel 3/8-18 x 1/4-18

Item#: 8662
Forged Body Ball Valve Brass 2 x 2

Forged Body Ball Valve Brass 3/4 x 3/4"

Item#: 63137
Pipe Close Nipple Brass 1/8-27 x 1/8-27, Pipe Close Nipple, Brass, 1/8-27 x 1/8-27, Male NPT x Male NPT, 3/4

Pipe Close Nipple Brass 3/8-18 x 3/8-18

Item#: 5299
Pipe Coupling Brass 1/4-18 x 1/4-18, Pipe Coupling, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 1200PSI

Pipe Coupling Brass 3/8-18 x 3/8-18

Item#: 5290
Miniature Clamp SS 7/32 to 5/8

Miniature Clamp SS 5/16 to 7/8"

Item#: 86723
Z Series Crimp-On Hose End 1/2

Z Series/1A Series Crimp-On Hose End 3/8" x 9/16-18

Item#: 16613
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8"

Item#: 86779
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 16mm x 1/2

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x M5

Item#: 17896
Nylon Hose Guard 0.91

Nylon Hose Guard 1.81" ID x 25' Length

Item#: 96564
IFI 100/107 Top Locknut Grade C 1-8, IFI 100/107 Top Locknut, Grade C, Alloy Steel, Zinc/Wax Finish, Coarse Thread

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933
Cross-Over Socket Extension Set, 3/4

Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece

Item#: DY89320050
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

Product Description

Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 98215
Configuration Tee
Tube Size 6 mm
Material Nickel-Plated Brass/PBT Resin
Working Pressure 150 PSI
Temperature Range 32 to 140 °F
UNSPSC #: 40183100
TAA Compliant: Yes
Weight: 0.04 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
