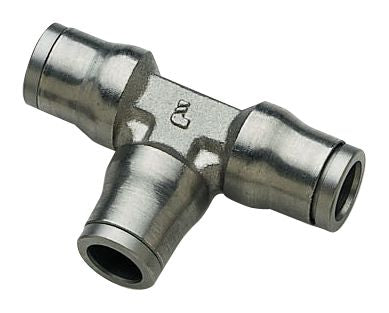

Push-to-Connect Union Tee Brass 5/16 x 5/16 x 5/16
Push-to-Connect Union Tee Brass 5/16 x 5/16 x 5/16

Push-to-Connect Union Tee, Nickel-Plated Brass, 5/16 x 5/16 x 5/16", Tube x Tube x Tube, 7 to 290 PSI
(Pack of 2)

Item#: 17872P

Parker Fluid Connectors Group

The nickel-plated brass push-to-connect fittings are suitable for compressed air (lubricated or non-lubricated). The fitting is designed to perform in particularly harsh (e.g. weld-splatter) or abusive (e.g. steel-toed boot) environments. Compatible with polyurethane and nylon tubing. Metal tubing may be used with specific preparation. For applications where the fitting is exposed to aggressive environments. Legris uses high phosphorous electroless nickel-plating for the nickel-plated brass push-to-connect fitting range. The electroless nickel-plating has a dull, flat finish. It adheres to more of the surface, such as in the root of the threads and grooves of the collet. It has increased resistance to water, harsh detergents and other aggressive fluids and environments. As a result, the nickel-plated brass push-to-connect series offers superior chemical, corrosion and abrasion resistance. The nickel-plated brass push-to-connect series utilizes a metal release button more appropriate for harsh and abusive environments.
• All items in the nickel-plated brass push-to-connect range are silicone free
• Working temperature: 5°F to 180°F
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• FDA chemical nickel-plated brass
• Construction:
– Body: Electroless nickel-plated brass
– Backup washer: Electroless nickel-plated brass
– Collet technology: Electroless nickel-plated brass
– O-ring: Nitrile
– Base: Electroless nickel-plated brass with thread sealant on tapered components
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together

Pipe Coupling Brass 1/4-18 x 1/4-18, Pipe Coupling, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 1200PSI

Pipe Coupling Brass 1/4-18 x 1/4-18

Item#: 5289
Pipe Coupling Brass 1/4-18 x 1/4-18, Pipe Coupling, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 1200PSI

Pipe Coupling Brass 1/2-14 x 1/2-14

Item#: 5291
Pipe Close Nipple Brass 1/8-27 x 1/8-27, Pipe Close Nipple, Brass, 1/8-27 x 1/8-27, Male NPT x Male NPT, 3/4

Pipe Close Nipple Brass 1/4-18 x 1/4-18

Item#: 5298
Hex Head Plug Brass 1/2-14 Male NPT, Hex Head Plug, Brass, 1/2-14 Male NPT, 1200PSI

Hex Head Plug Brass 3/8-18 Male NPT

Item#: 5364
Pipe Bushing Brass 1/2-14 x 1/8-27, Pipe Bushing, Brass, 1/2-14 x 1/8-27, Male NPT x Female NPT, 1200PSI

Pipe Bushing Brass 3/8-18 x 1/4-18

Item#: 5284
Silicone Heater/Coolant Hose Clamp SS 2-1/16 to 3

Silicone Heater/Coolant Hose Clamp 9/16 to 1-1/16"

Item#: 88718
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16"

Item#: 87640
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"

Item#: 86754
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32"

Item#: 86780
Push-to-Connect Elbow Nylon 6 mm x M7x1, Push-to-Connect Elbow, Nylon Body, Nickel-Plated Brass Base, 6 mm x M7x1

Push-to-Connect Elbow Nylon 6 mm x M7x1

Item#: 17906P
Push-to-Connect Y Union Nylon 5/16 x 5/16

Push-to-Connect Y Union Nylon 5/16 x 5/16" x 10 mm

Item#: 54391P
Push-to-Connect Run Tee Nylon 3/8 x 3/8 x 1/4

Push-to-Connect Run Tee Nylon 3/8 x 3/8 x 1/4"

Item#: 86776P
Push-to-Connect Y Union Nylon 5/16 x 5/16

Push-to-Connect Y Union Nylon 12 x 12 x 12 mm

Item#: 17940P
Push-to-Connect Branch Tee Nylon 1/8 x 1/8 x 1/8

Push-to-Connect Branch Tee Nylon 1/4 x 1/4 x 3/8"

Item#: 62205P
Union Tee, 3/8

Union Tee, 1/4" Tube

Item#: 1593457P
Butt Connector 16 to 14 AWG Blue, Butt Connector, 2-Piece Heat Seal, Polyolefin Insulated, 16 to 14 AWG, 1.45

Butt Connector 16 to 14 AWG Blue

Item#: 92823
Nylon Cable Tie 15.25

Nylon Cable Tie 4" Black

Item#: 94609
180-degree Wide Beam Head Light with Side Light

180-degree Wide Beam Head Light with Side Light

Item#: 1639013

Product Description

The nickel-plated brass push-to-connect fittings are suitable for compressed air (lubricated or non-lubricated). The fitting is designed to perform in particularly harsh (e.g. weld-splatter) or abusive (e.g. steel-toed boot) environments. Compatible with polyurethane and nylon tubing. Metal tubing may be used with specific preparation. For applications where the fitting is exposed to aggressive environments. Legris uses high phosphorous electroless nickel-plating for the nickel-plated brass push-to-connect fitting range. The electroless nickel-plating has a dull, flat finish. It adheres to more of the surface, such as in the root of the threads and grooves of the collet. It has increased resistance to water, harsh detergents and other aggressive fluids and environments. As a result, the nickel-plated brass push-to-connect series offers superior chemical, corrosion and abrasion resistance. The nickel-plated brass push-to-connect series utilizes a metal release button more appropriate for harsh and abusive environments.
• All items in the nickel-plated brass push-to-connect range are silicone free
• Working temperature: 5°F to 180°F
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• FDA chemical nickel-plated brass
• Construction:
– Body: Electroless nickel-plated brass
– Backup washer: Electroless nickel-plated brass
– Collet technology: Electroless nickel-plated brass
– O-ring: Nitrile
– Base: Electroless nickel-plated brass with thread sealant on tapered components
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 17872P
Manufacturer Model #: 3604 08 00
Style Nickel-Plated Brass Push-To-Connect
Configuration Union Tee
Tube Size 8mm (5/16")
Material Nickel-Plated Brass
Working Pressure 290 PSI
Temperature Range 5 to 180 °F
UNSPSC #: 40183100
TAA Compliant: Yes
Weight: 0.19 lb
