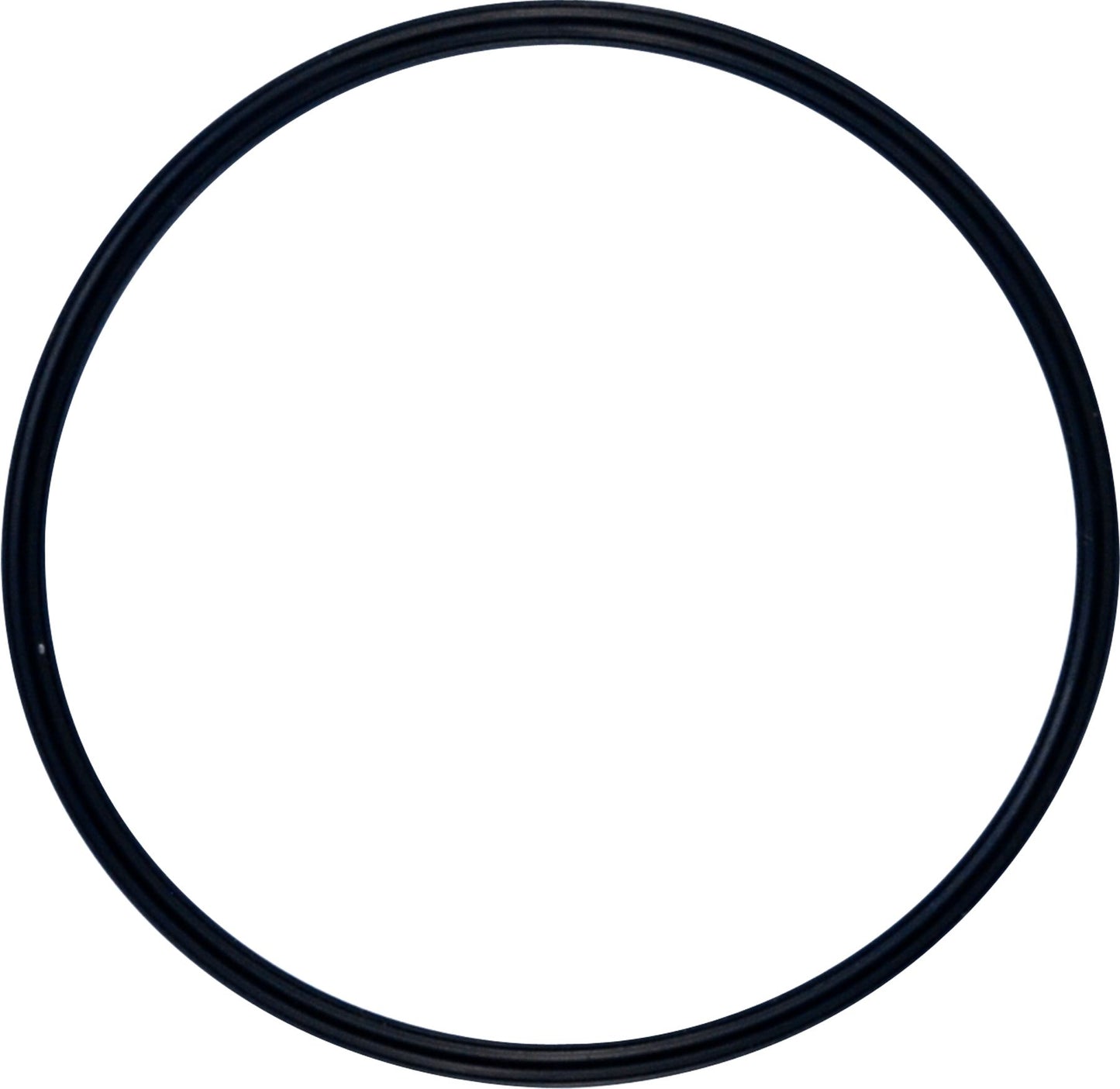

Quad-Seal O-Ring, Buna-N, 70 Durometer, Black, Dash No. 4-140, 2-1/4" ID x 0.103" Thickness
(Pack of
10)
SKU:54943 Item#: 54943
This innovative, highly effective sealing concept uses a four-lobed design, which makes it an outstanding choice for a variety of static and dynamic sealing applications. The shape provides twice the sealing surface of traditional O-rings.
• Wide range of applications
• Reduces the tendency of O-ring roll
• 70 Durometer Buna-N
NOTE: The “4” in the industry number designates four-lobed design.
Couldn't load pickup availability
Catalog page#: 8-104
Frequently Bought Together
Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability
Push On Tapered Cap/Plug Polyethylene 1/4"
Couldn't load pickup availability
Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Face Seal O-Ring Buna-N 0.926 x 0.07"
Couldn't load pickup availability
Industrial O-Ring Buna-N 7/32 x 11/32 x 1/16"
Couldn't load pickup availability
Industrial O-Ring Buna-N 1 x 1-1/4 x 1/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
3/4" Dia. Fractional Drill Bit with Reduced 1/2" Shank, 118o Point
Couldn't load pickup availability
Swivel Head Ratchet 1/2 Drive
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 7/16-14
Couldn't load pickup availability
3/4" Dia. Fractional Drill Bit with Reduced 1/2" Shank, 118o Point
Couldn't load pickup availability
Swivel Head Ratchet 1/2 Drive
Couldn't load pickup availability
Nut Torq Tite Hex Flange, 7/16-14
Couldn't load pickup availability
Product Description
This innovative, highly effective sealing concept uses a four-lobed design, which makes it an outstanding choice for a variety of static and dynamic sealing applications. The shape provides twice the sealing surface of traditional O-rings.• Wide range of applications
• Reduces the tendency of O-ring roll
• 70 Durometer Buna-N
NOTE: The “4” in the industry number designates four-lobed design.
Technical Specifications
| Item#: | 54943 |
|---|---|
| Description | O-Ring |
| Type | Industrial |
| Durometer | 70 |
| Thickness | 0.103 (3/32) " |
| Industry Number | 4-140 |
| Material | Buna-N |
| Color | Black |
| Style | Quad-Seal |
| UNSPSC #: | 31411600 |
| TAA Compliant: | Yes |
| Weight: | 0.03 lb |
