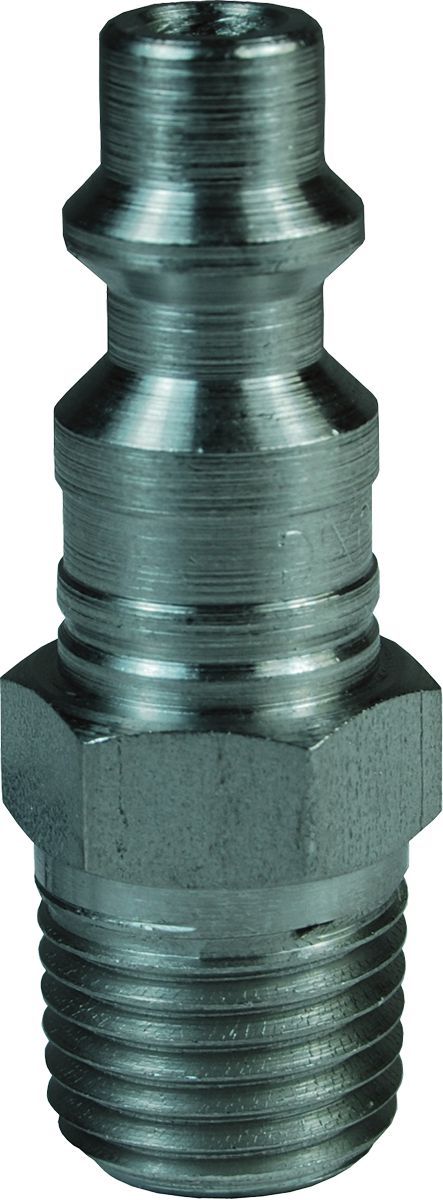

DF-Series Industrial Pneumatic Quick Disconnect Plug, 303 Stainless Steel, Male NPTF, 1/4" Body Size, 3/8-18 Thread Size
(Pack of
1)
SKU:1677196 Item#: 1677196
Heavy-duty sleeve type couplers feature a built-in sleeve guard to minimize accidental disconnect. Couplers feature stainless steel coupling balls and springs for corrosion resistance. Machined components are manufactured using 303 stainless steel bar stock. Nitrile (Buna-N) seals are standard.
• Industrial interchange design
• Interchanges with the MIL-C-4109F, A-A 59439, and ISO6150B standards.
• Maximum working pressure: 500 PSI
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
DOT Union Brass 1/4 x 1/4"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Product Description
Heavy-duty sleeve type couplers feature a built-in sleeve guard to minimize accidental disconnect. Couplers feature stainless steel coupling balls and springs for corrosion resistance. Machined components are manufactured using 303 stainless steel bar stock. Nitrile (Buna-N) seals are standard.• Industrial interchange design
• Interchanges with the MIL-C-4109F, A-A 59439, and ISO6150B standards.
• Maximum working pressure: 500 PSI
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
Technical Specifications
| Item#: | 1677196 |
|---|---|
| Manufacturer Model #: | D2M3-S |
| Description | Industrial Quick Disconnect |
| Type | Plug |
| Style | Industrial |
| Body Size | 1/4 " |
| Thread Style | NPTF |
| Thread Size | 3/8 " |
| Working Pressure | 500 PSI |
| Material | 303 Stainless Steel |
| Length | 1.75 " |
| Hex Size | 3/4 " |
| Dixon Number | D2M3-S |
| UNSPSC #: | 31163101 |
| TAA Compliant: | Yes |
| Weight: | 0.12 lb |
