Home Material Handling Roller Chain and Tools Chain Roller Chain, Single Strand, O-Ring, Steel, Industry No. 80
Chain
Roller Chain, Single Strand, O-Ring, Steel, Industry No. 80, 1
Roller Chain, Single Strand, O-Ring, Steel, Industry No. 80, 1

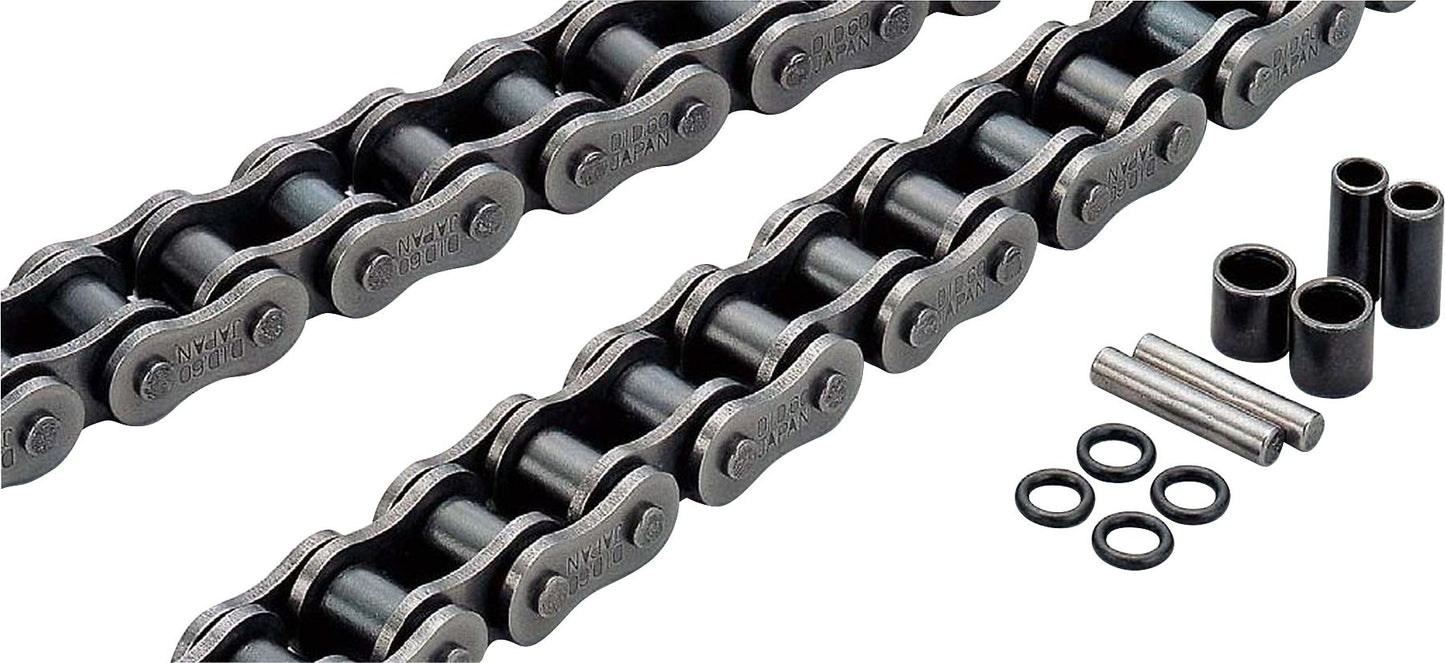

Roller Chain, Single Strand, O-Ring, Steel, Industry No. 80, 1" Pitch, 16,280 lbs Average Tensile Strength
(Pack of 10)

Item#: 1443515

Daido®

O-ring chain is dramatically improved in durability, since grease is sealed between the pins and bushings by O-rings. O-ring chain is recommended for applications which provide abrasive conditions require frequent maintenance or where sintered bushing roller chain is not applicable due to its insufficient shock load capacity or high speed capacity.

Read More

Catalog page#: 15-60

Frequently Bought Together

Roller Chain, Single Strand, Steel, Industry No. 60, 3/4'' Pitch, 9,900 lbs Average Tensile Strength

Roller Chain, Single Strand, Steel, Industry No. 80

Item#: 85359
Roller Chain, Single Strand, Steel, Industry No. 60, 3/4'' Pitch, 9,900 lbs Average Tensile Strength

Roller Chain, Single Strand, Steel, Industry No. 35

Item#: 85354
Roller Chain, Single Strand, Sintered Bushing, Steel, Industry No. 40, 1/2

Roller Chain, Single Strand, Sintered Bushing, Steel, Industry No. 60

Item#: 1443432
Tuff-Edge® Web Sling, Polyester, Silver, 8' Length, Sling, Web, Tuff-Edge, Eye & Eye, Type 3, Flat Eye, 2

Tuff-Edge® Web Sling, Polyester, Silver, 6' Length

Item#: 1412718
Tarp Strap Epdm Rubber with Hooks 28

Tarp Strap Epdm Rubber with Hooks 24" Long

Item#: 99562
Quick Link 3/16

Quick Link 3/16" Chain Size 616 Lb Safe Load

Item#: 85522
Connecting Link, Single Strand, Steel, Industry No. 80, 1

Connecting Link, Single Strand, Steel, Industry No. 80

Item#: 85374
Offset Link (Half Link), Single Strand, Steel, Industry No. 41, 1/2

Offset Link (Half Link), Single Strand, Steel, Industry No. 41

Item#: 85384
Connecting Link, Double Strand, Steel, Industry No. 60-2, 3/4

Connecting Link, Double Strand, Steel, Industry No. 60-2

Item#: 85381
USS Flat Washer Thru-Hardened Steel 7/8

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: 88446
Butt Connector 22 to 18 AWG Red, Butt Connector, 2-Piece Heat Seal, Red, 22 to 18 AWG, 1.45

Butt Connector 22 to 18 AWG Red

Item#: 92822
Stepdown Butt Connector 22 to 18/16 to 14 AWG, Stepdown Butt Connector, Crystal Clear Insulation, 22 to 18/16 to 14 AWG

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Item#: 1495188

Product Description

O-ring chain is dramatically improved in durability, since grease is sealed between the pins and bushings by O-rings. O-ring chain is recommended for applications which provide abrasive conditions require frequent maintenance or where sintered bushing roller chain is not applicable due to its insufficient shock load capacity or high speed capacity.

Technical Specifications

Item#: 1443515
Manufacturer Model #: RC80LDR
Type Single Strand
Style O-Ring
Material Steel
Finish Plain
Industry Number 80
Pitch 1 "
Roller Width 0.625 "
Roller Diameter 0.625 "
Plate Thickness 0.126 "
Plate Height 0.941 "
Length 10 ft
Average Tensile Strength 16,280 lb
Maximum Load 3,300 lb
UNSPSC #: 31151603
TAA Compliant: Yes
