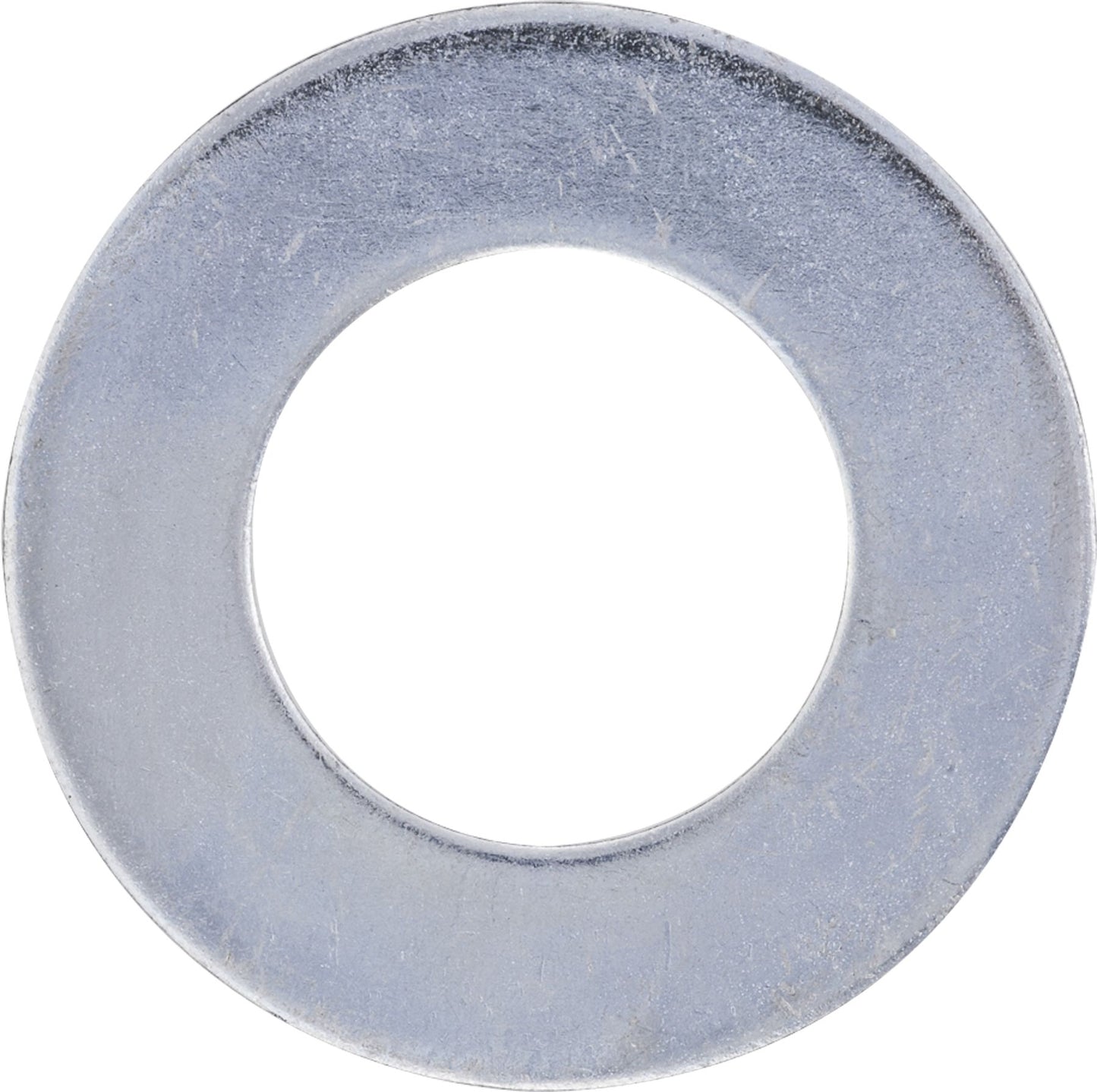

ASTM F436 SAE Structural Flat Washer, High Strength, Steel, Zinc Finish, 1-5/8" ID, 3" OD, 5/32" Thickness
(Pack of
5)
SKU:88688 Item#: 88688
• Medium carbon steel
• Heat-treated, quenched and tempered
• Zinc-plated
• SAE manufactured to ASTM Specification F436
• Designed for use with Grade 5 and Grade 8 Cap Screws
Couldn't load pickup availability
Catalog page#: 3-33
Frequently Bought Together
Lock Washer Alloy Steel 3/8"
Item#: FA530A
Couldn't load pickup availability
Cable Tie 13.38" Black
Item#: 85490
Couldn't load pickup availability
Structural Flat Washer 3"
Item#: 21586
Couldn't load pickup availability
Structural Flat Washer 2-3/4"
Item#: 21585
Couldn't load pickup availability
Structural Flat Washer 1-15/32"
Item#: 21580
Couldn't load pickup availability
USS Flat Washer Low Carbon Steel 7/16"
Item#: FA504
Couldn't load pickup availability
Product Description
• Medium carbon steel• Heat-treated, quenched and tempered
• Zinc-plated
• SAE manufactured to ASTM Specification F436
• Designed for use with Grade 5 and Grade 8 Cap Screws
Technical Specifications
| Item#: | 88688 |
|---|---|
| Nominal Size | 1-1/2 " |
| Finish | Bright Zinc |
| Material | Carbon Steel |
| I.D. | 1-5/8 " |
| O.D. | 3 " |
| Thickness | 5/32 " |
| Specifications | ASTM F436 |
| Minimum Thickness | 0.136 " |
| Maximum Thickness | 0.177 " |
| Type | Structural Flat Washer |
| UNSPSC #: | 31161807 |
| TAA Compliant: | Yes |
| Weight: | 1.02 lb |
