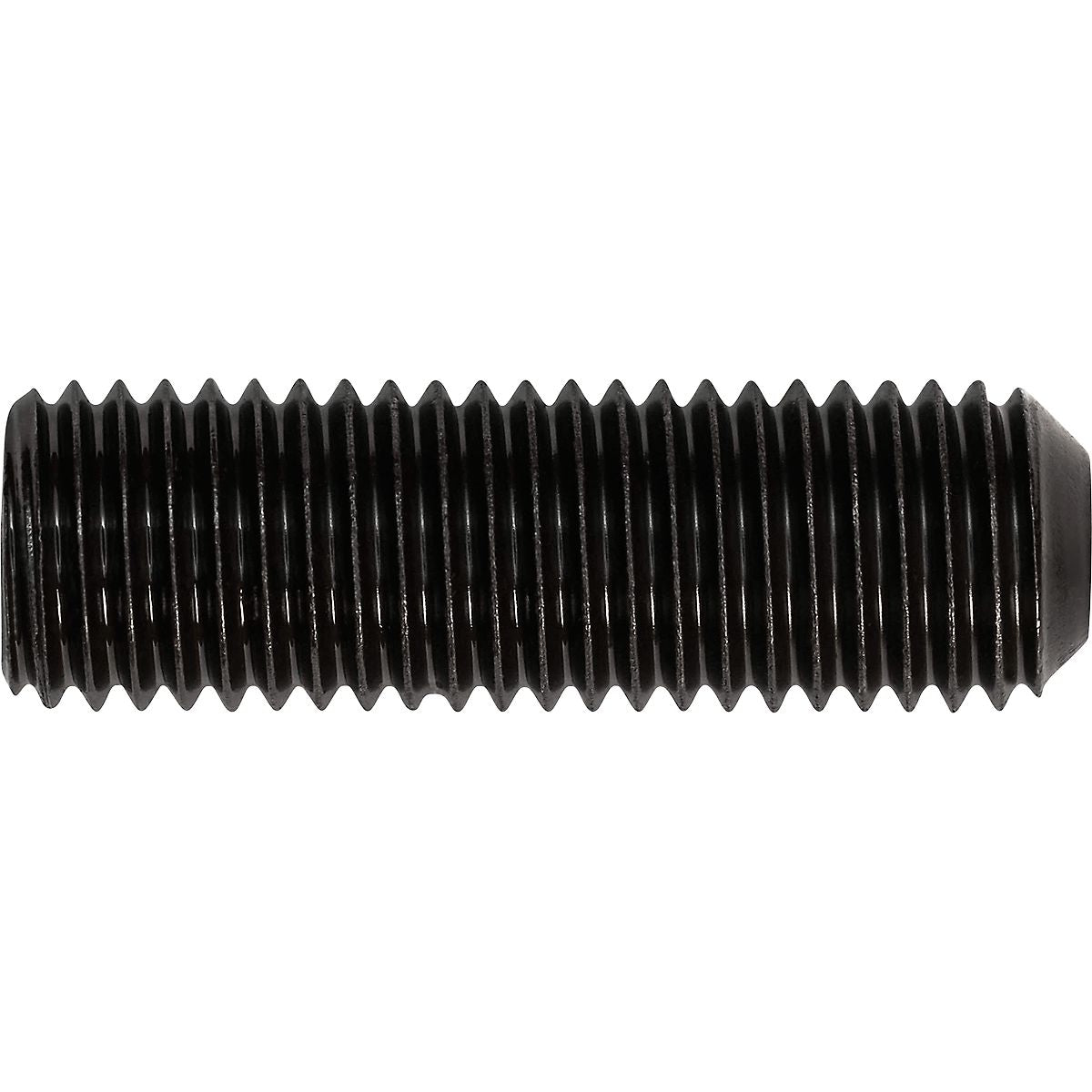

Set Screw, Cup Point, Alloy Steel, Black Oxide Finish, Fine Thread, 5/32" Hex Key, 5/16-24 x 1"
(Pack of
50)
SKU:56052 Item#: 56052
• High-strength, heat-treated high-alloy steel
• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4
Couldn't load pickup availability
Catalog page#: 4-11
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/8-11
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability
Set Screw Cup Point Steel 5/16-18 x 5/16"
Couldn't load pickup availability
Set Screw Knurled Point Steel #10-24 x 3/8"
Couldn't load pickup availability
Set Screw Knurled Point Steel #8-32 x 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Flat Head Socket Cap Screw Steel 1/2-13 x 2"
Couldn't load pickup availability
Flat Head Socket Cap Screw Steel 1/2-13 x 1-1/2"
Couldn't load pickup availability
Set Screw Cup Point Steel 1/4-20 x 1/4"
Couldn't load pickup availability
Product Description
• High-strength, heat-treated high-alloy steel• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4
Technical Specifications
| Item#: | 56052 |
|---|---|
| Diameter | 5/16 " |
| Thread Pitch | 24 |
| Length | 1 " |
| Point | Cup |
| Type | Set Screw |
| Finish | Black |
| Material | Alloy Steel |
| Tensile Strength | 180,000 PSI |
| Drive | Hex |
| Thread | Fine |
| Head Style | Socket Head |
| Key Size | 5/32 " |
| Size | 5/16-24X1 |
| UNSPSC #: | 31161505 |
| TAA Compliant: | Yes |
| Weight: | 0.8 lb |
