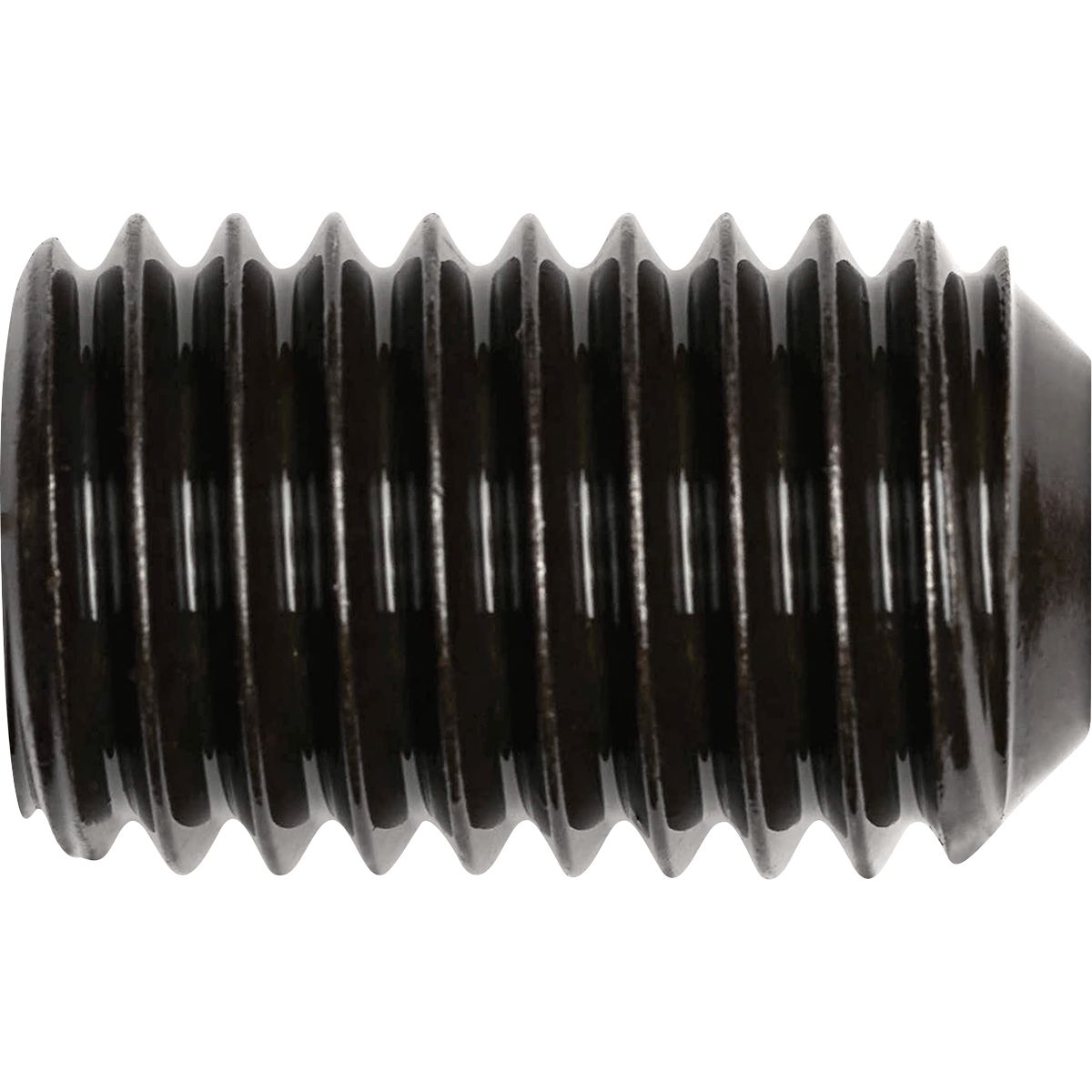

Set Screw, Cup Point, Alloy Steel, Black Oxide Finish, Coarse Thread, 5/16" Hex Key, 5/8-11 x 1"
(Pack of
25)
SKU:3756 Item#: 3756
• High-strength, heat-treated high-alloy steel
• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4
Couldn't load pickup availability
Catalog page#: 4-11
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Set Screw Knurled Point Steel 3/8-16 x 3/4"
Couldn't load pickup availability
Set Screw Cup Point Steel 5/16-18 x 3/4"
Couldn't load pickup availability
Set Screw Cup Point 18-8 SS 1/4-20 x 1/4"
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Socket Head Cap Screw Alloy Steel 1/4-20 x 3/4"
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M12-1.75 x 25mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M10-1.5 x 20mm
Couldn't load pickup availability
Product Description
• High-strength, heat-treated high-alloy steel• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4
Technical Specifications
| Item#: | 3756 |
|---|---|
| Diameter | 5/8 " |
| Thread Pitch | 11 |
| Length | 1 " |
| Point | Cup |
| Type | Set Screw |
| Finish | Black |
| Material | Alloy Steel |
| Tensile Strength | 180,000 PSI |
| Drive | Hex |
| Thread | Coarse |
| Head Style | Socket Head |
| Key Size | 5/16 " |
| Size | 5/8X1 |
| UNSPSC #: | 31161505 |
| TAA Compliant: | Yes |
| Weight: | 1.49 lb |
