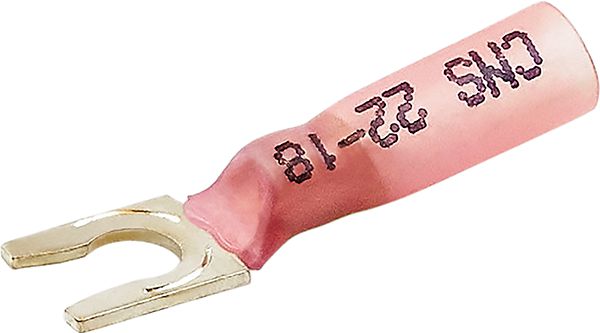

Snap Locking Spade Terminal, 2-Piece Heat Seal, Polyolefin Insulated, 22 to 18 AWG, #8 Stud Size, Red
(Pack of
25)
A complete unit: dual wall heat shrink tubing, pre-shrunk around a metal terminal
• Liquid- and gas-tight, vibration-proof
• Irradiated polyolefin insulation
• Contains permanent sealants
• Terminals have brazed seams
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-14
Frequently Bought Together
Right Angle Safety LED Light 3x AA 7.44"
Couldn't load pickup availability
MINI Fuse 30A Green
Couldn't load pickup availability
MINI Fuse 10A Red
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Block Spade Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Snap Spade Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Snap Spade Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Male Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Product Description
A complete unit: dual wall heat shrink tubing, pre-shrunk around a metal terminal• Liquid- and gas-tight, vibration-proof
• Irradiated polyolefin insulation
• Contains permanent sealants
• Terminals have brazed seams
Technical Specifications
| Item#: | 28904 |
|---|---|
| Type | Crimp and Heat Shrink |
| Style | Insulated |
| Wire Gauge | 22-18 AWG |
| Stud Size | 8 |
| Color | Red |
| Approvals | UL |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
