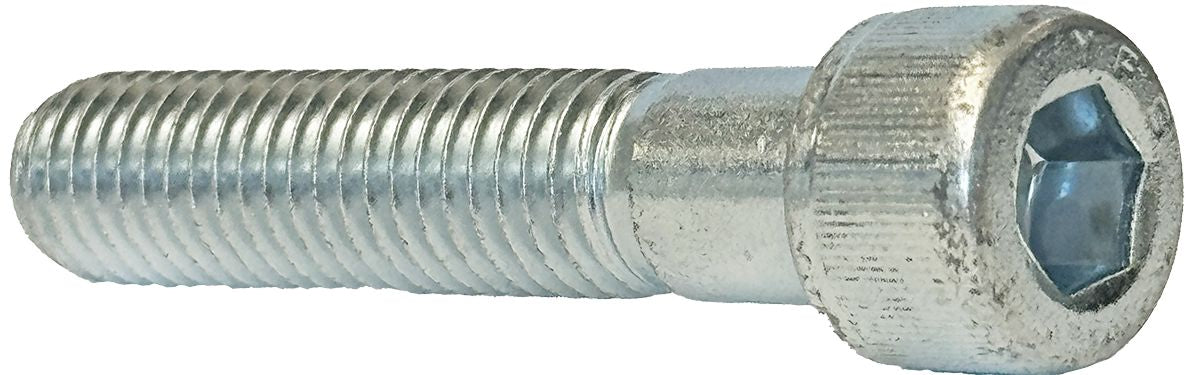

Socket Head Cap Screw, 12.9 Steel, Clear Trivalent Zinc Finish, Course Thread, 10MM Socket Drive, 12- 1.75 x 60MM
(Pack of
25)
SKU:1654378 Item#: 1654378
• High-strength, heat-treated alloy steel
• Zinc finish for corrosion protection
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 3/8"
Item#: 88437
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Item#: FA88445
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Item#: 87510
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Item#: 1368140
Couldn't load pickup availability
High Solids Paints Gloss Black
Item#: 1509224
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Item#: 88445
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M4-0.7 x 12mm
Item#: 80494
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M8-1.25 x 25mm
Item#: 80512
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M6-1 x 16mm
Item#: 80504
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M4-0.7 x 12mm
Item#: 80494
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M8-1.25 x 25mm
Item#: 80512
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M6-1 x 16mm
Item#: 80504
Couldn't load pickup availability
Product Description
• High-strength, heat-treated alloy steel• Zinc finish for corrosion protection
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications
Technical Specifications
| Item#: | 1654378 |
|---|---|
| Diameter | M12 |
| Thread Pitch | 1.75 mm |
| Length | 60 mm |
| Material | Alloy Steel |
| Finish | Bright Zinc |
| Head Style | Socket |
| Tensile Strength | 176900 |
| Thread | Coarse |
| Type | 10 |
| Key Size | 10 mm |
| Drive | Hex |
| Description | M12X60 912-12.9 ZN PT |
| UNSPSC #: | 31161518 |
| TAA Compliant: | No |
| Weight: | 3.4613 lb |
